New 2026 KTM 390 SMC R
Vehicle Details
- Stock #: KT6138
- VIN: MD2J2J405TN206138
- Mileage: 1
- Engine: 1-cylinder, 4-stroke engine
- Exterior Color: ORANGE
Similar Vehicles
Frequently purchased together
Please select accessories from the list.
Click on the accessory link below to get more details.
Click on the accessory link below to get more details.

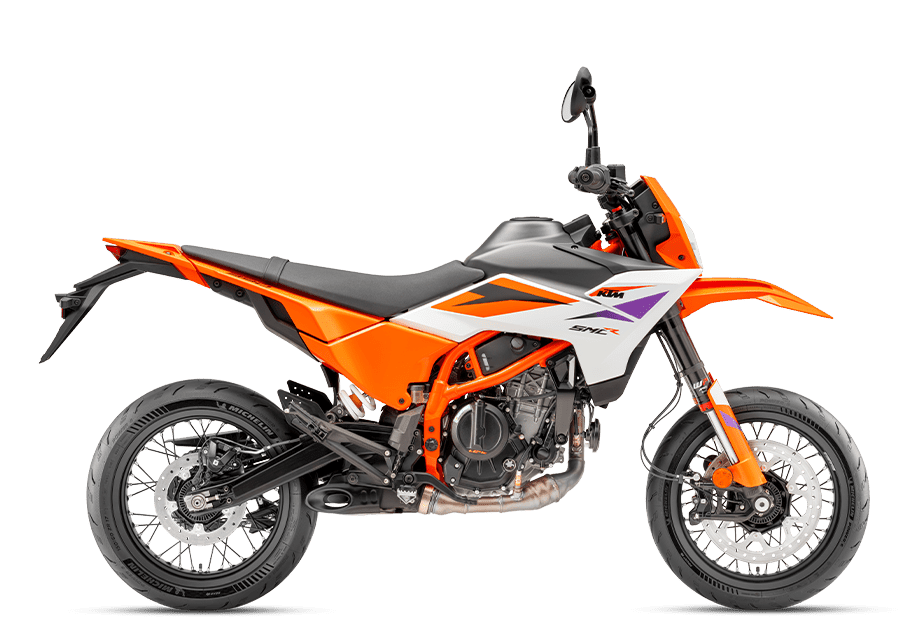

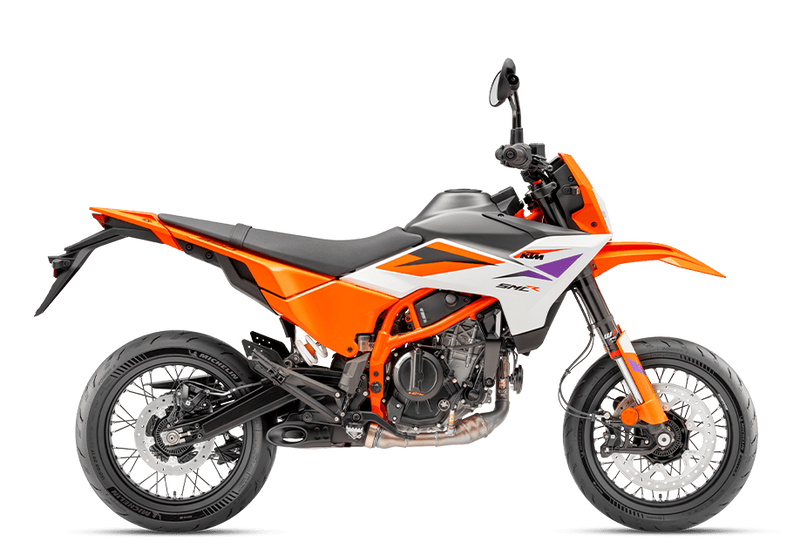

2026 KTM 390 SMC R
Sliding at the apex to join the KTM SuperMotard army in the middle-weight battalion, the KTM 390 SMC R brings unlimited fun to the masses. Just like its KTM 690 SMC R brethren, it is engineered to dominate the asphalt - as well as the odd dirt track - with ease.Highlighted Features
- Adjustablity: Finding that perfect balance when attacking your favorite stretch of asphalt or for added comfort around town is easy, thanks to the KTM 390 SMC R's adjustable suspension, brake and clutch levers, and footrests - not to mention a complete PowerPart catalog filled with performance and style enhancing add-ons.
- TFT-DISPLAY: The H42 TFT dashboard takes prime position ahead of the rider, featuring a unique, specially-designed user interface to suit the compact screen size. The 4.2" screen made from bonded glass, the TFT screen also boasts a special coating and polarization to reduce glare and increase visibility in all lighting conditions. Riders can also access music, incoming calls, turn-by-turn navigation, and Ride Modes - with a USB port for device charging duties.
- Bodywork: With an ergo triangle inspired by its trusted and beloved 690 sibling, the KTM 390 SMC R boasts aggressive bodywork and a compact 9L metal fuel tank that is perfectly styled to allow for easy, knee-down action. The bodywork is also made from proven, flexible, and long-lasting PP plastic material better suited for SuperMoto and aggressive riding.
- Graphics: The KTM 390 SMC R comes with premium looks and a striking graphic design as standard. Thanks to top-tier in-mold graphics, it not only looks the part but can also handle anything the outdoors throws at it.
Engine
- Design: 1-cylinder, 4-stroke engine
- Displacement: 398.7 cm³
- Power: 45 PS
- Torque: 39 Nm
- Transmission: 6-speed
- CO2 emissions: 79 g/km
- Cooling: Liquid cooled
- Engine cylinder: Single cylinder
- EMS: Bosch EMS with RBW
- Engine oil: Motorex Formula 4T 15W/50
- Engine stroke: 4-Stroke
Chassis
- Front brake disc diameter: 320 mm
- Rear brake disc diameter: 240 mm
- Front brake: Floating disk, Bybre radial calipers with 2 pistons
- Rear brake: Bybre floating caliper 1 piston
- Chain: 520 X-Ring
- Frame design: Steel trellis frame, powder coated
- Steering head angle: 63.1 °
- Rear subframe design: Bolt on steel trellis frame, powder coated
- Trail: 111 mm
- Wheelbase: 1453 mm
Suspension
- Front suspension: WP APEX open cartridge 43mm
- Rear suspension: WP APEX Split Piston
- Suspension travel (front): 230 mm
- Suspension travel (rear): 230 mm
- Front suspension addition: Comp. and Reb. Adjustable - 30 Clicks
- Rear suspension addition: Preloand with top ring and Reb. with 20 clicks
Dimensions
- Seat height: 860 mm
- Tank capacity (approx.): 9 l
- Ground clearance: 270 mm
- Weight (without fuel): 154 kg
- Weight fully fueled: 161 kg
- Front wheel diameter: 17 "
- Rear wheel diameter: 17 "
- Front wheel width: 2 "
- Rear wheel width: 4 "
- Wheels: 2 x 17"; 4 x 17"
- Wheels: Spoked wheels with aluminium rims
