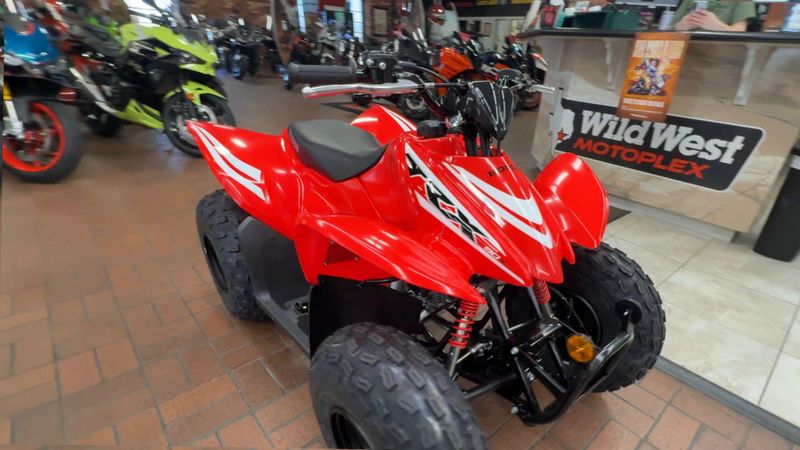

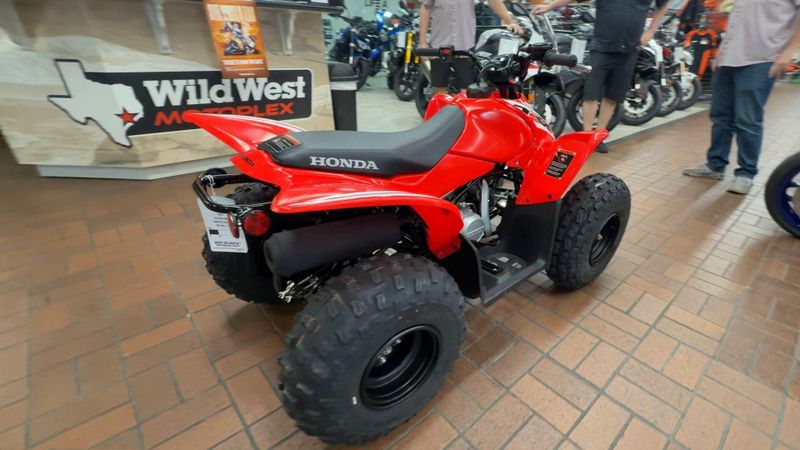

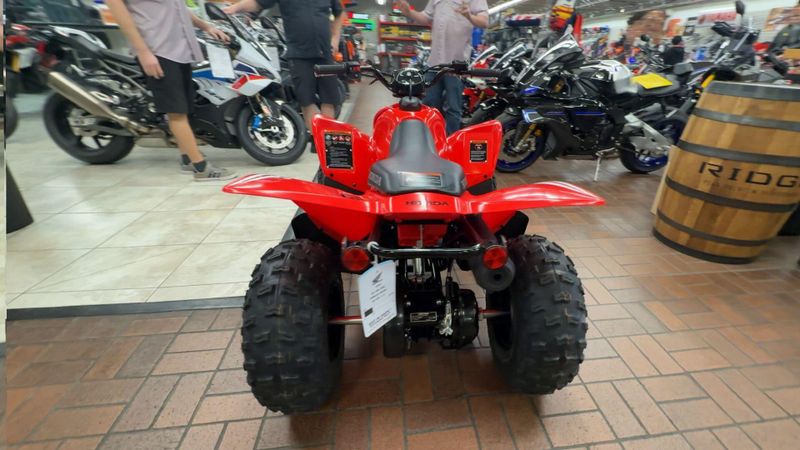

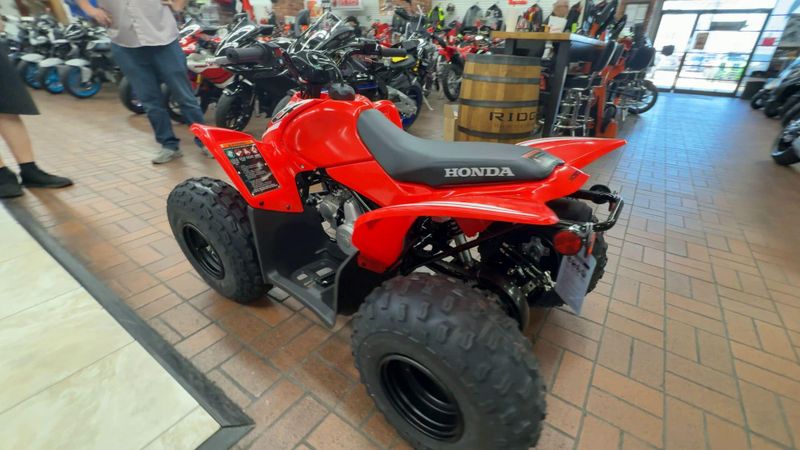

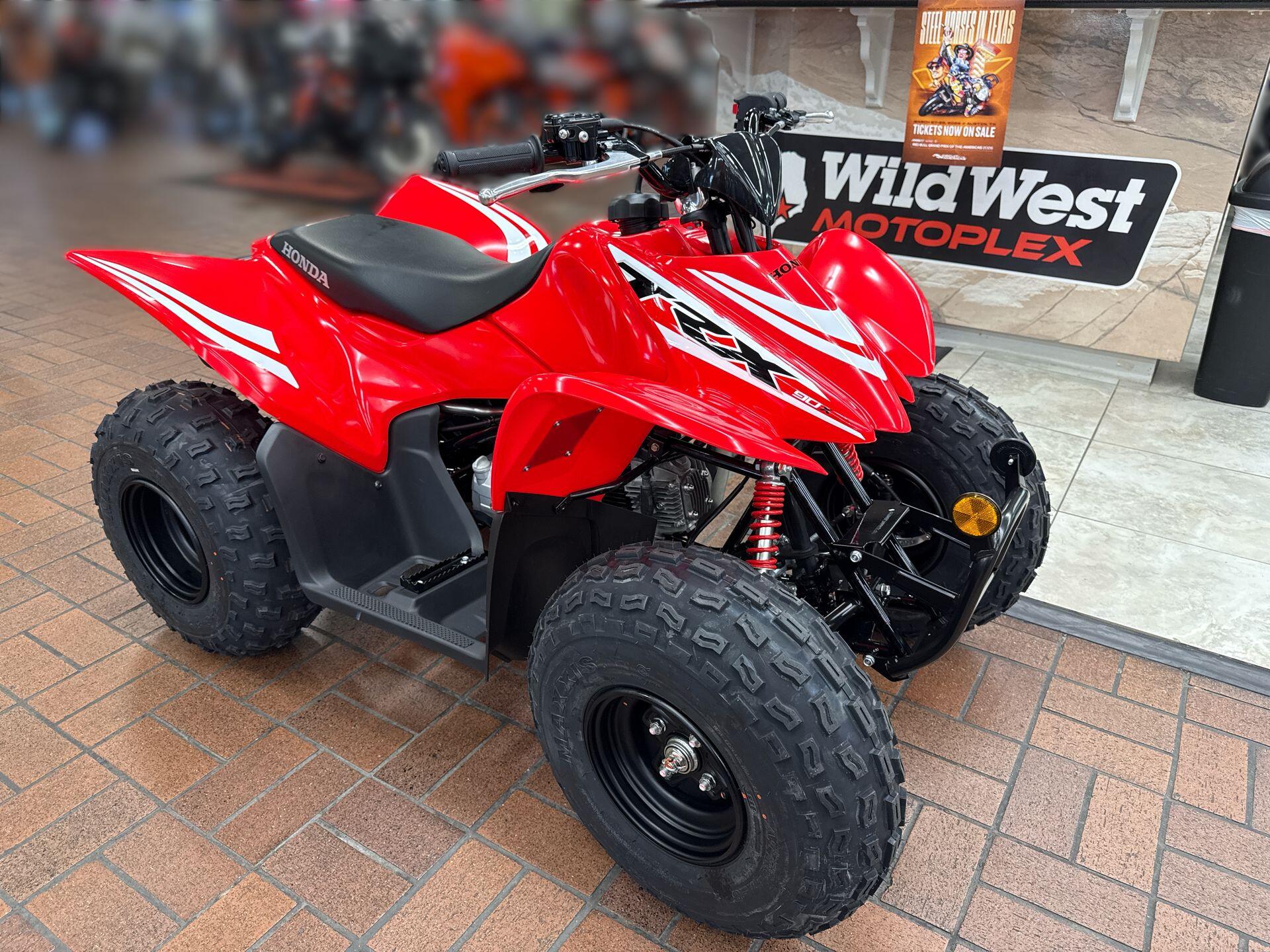

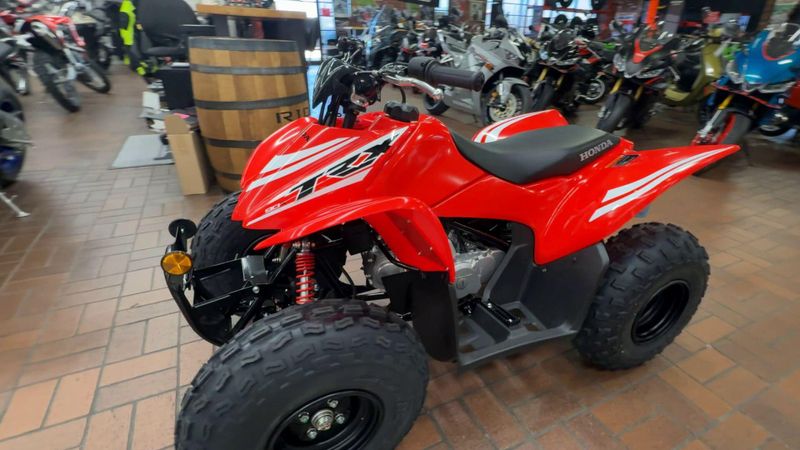

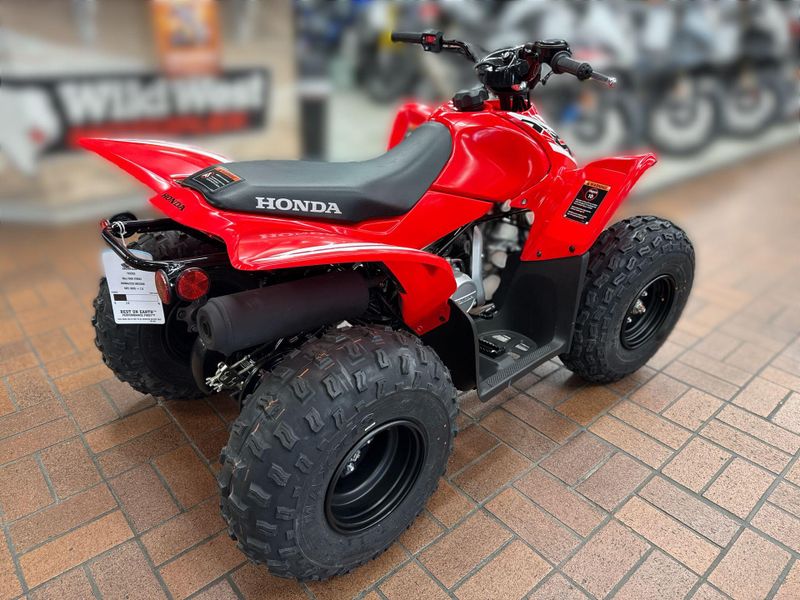

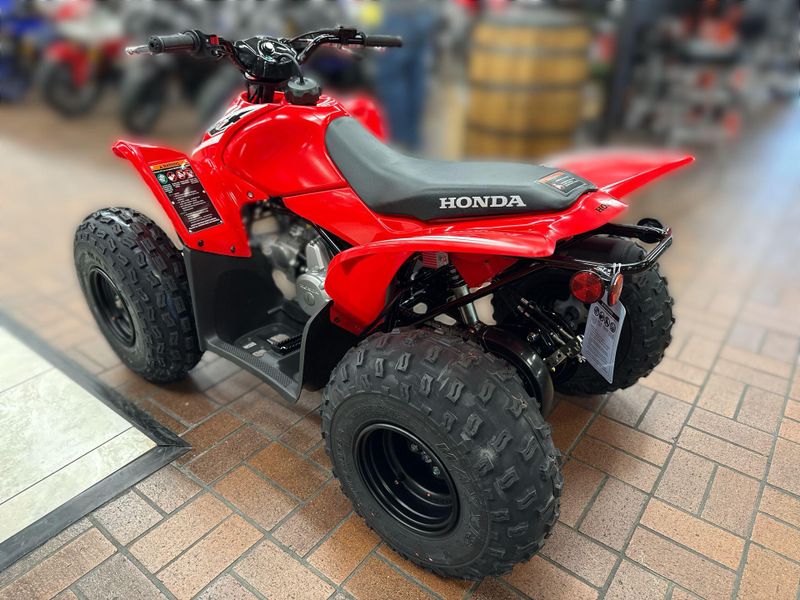

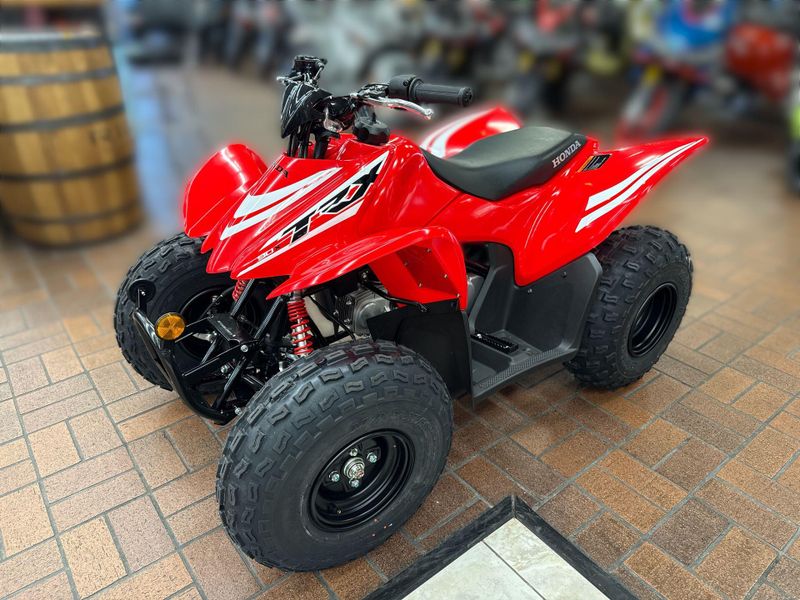

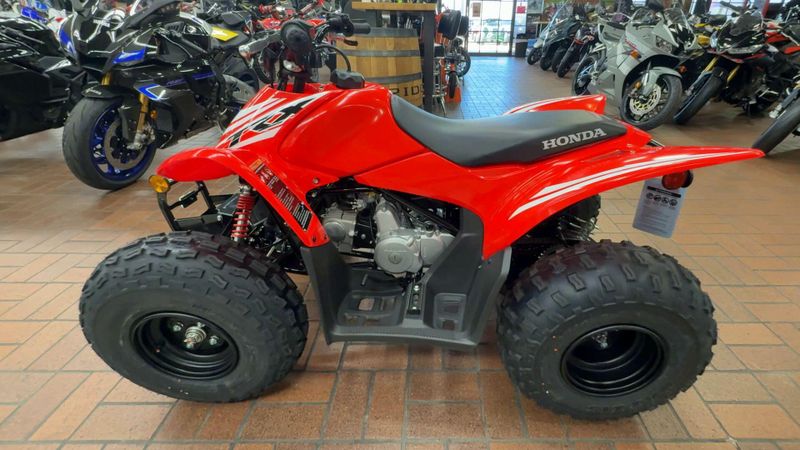

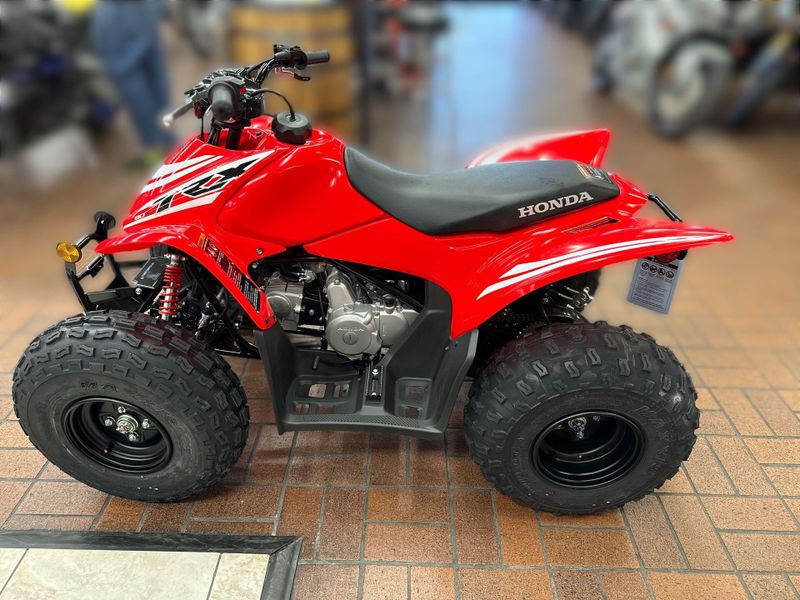

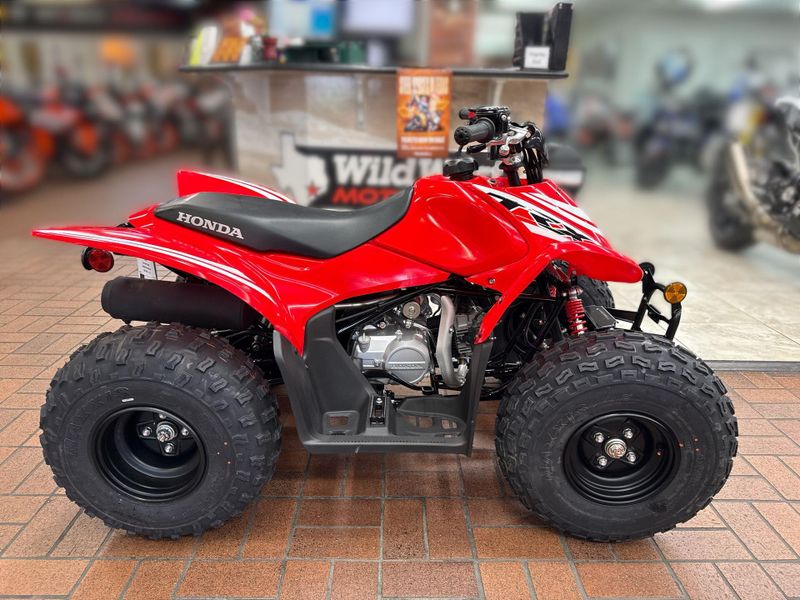

New 2026 Honda TRX 90X
Vehicle Details
- Stock #: HA0934
- VIN: 1HFTE5509TJ200934
- Engine: 86cc air-cooled single-cylinder four-stroke
- Exterior Color: RED
- Drive: 4X2
Similar Vehicles
Frequently purchased together
Please select accessories from the list.
Click on the accessory link below to get more details.
Click on the accessory link below to get more details.
Start them off right.
Start their off-road story off right with the TRX90X. Small but mighty, it’s packed with Honda quality, a no-clutch automatic transmission, and a rider-friendly design that makes it the ideal introduction to adventure. Built just for your little ripper, it’s easy to see why, year after year, the TRX90X roosts every other ATV in its class.- 86cc air-cooled SOHC single-cylinder four-stroke engine
- Electric start
- Rugged steel frame
- Race-style graphics
- Keyed ignition
Highlighted Features

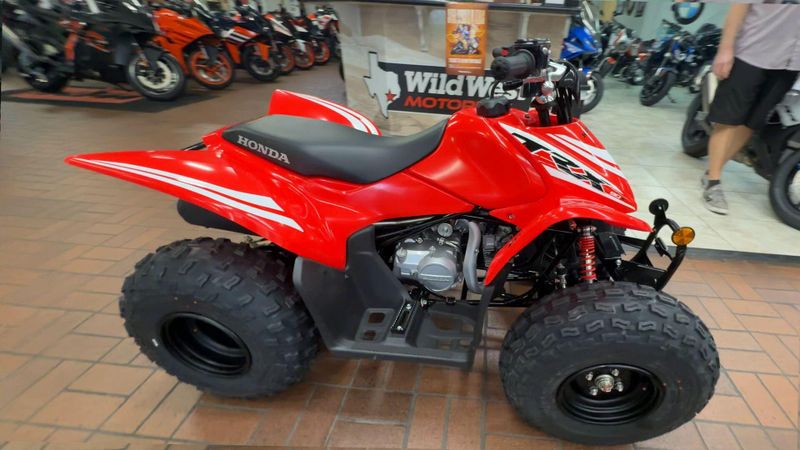

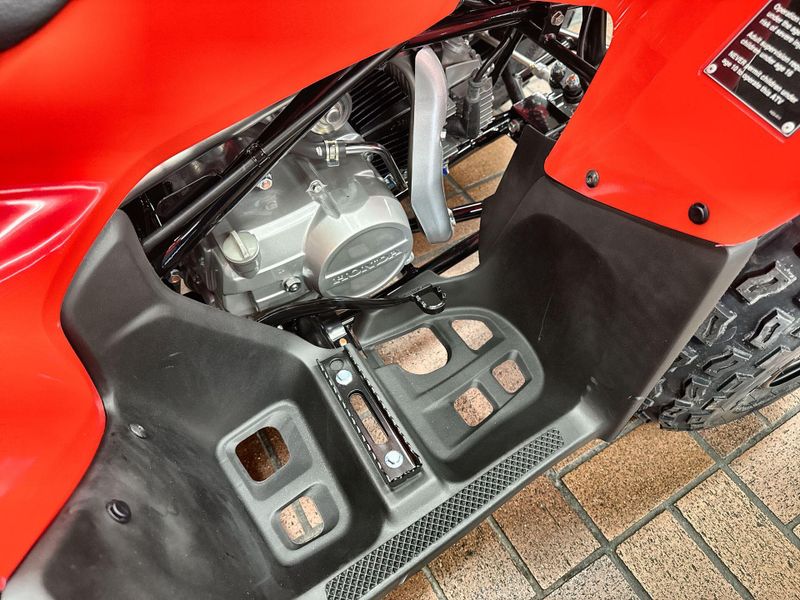

- Rugged, reliable 86cc engine: Our proven 86cc single-overhead-cam (SOHC) four-stroke engine offers smooth, useable power and legendary reliability.

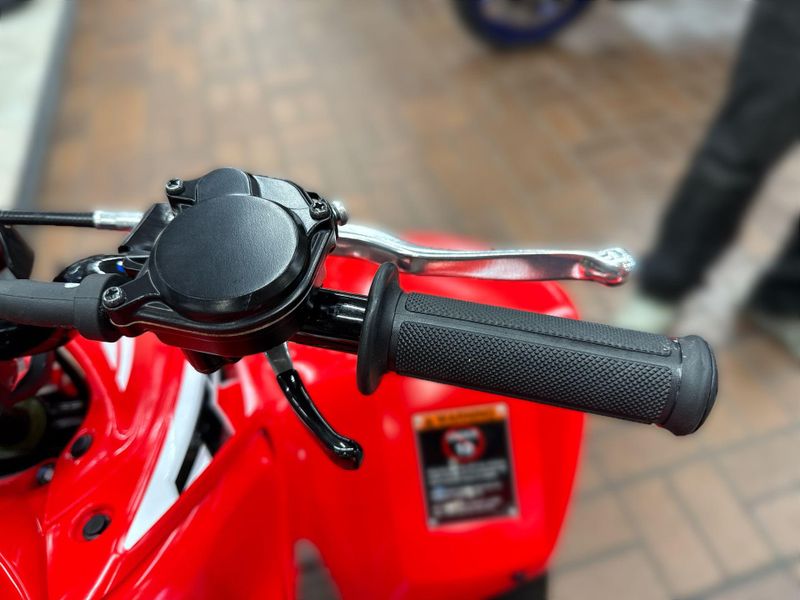

- Semi-automatic transmission: This mighty little ATV features a durable automatic clutch that makes takeoffs and shifting a breeze. A versatile foot-operated four-speed transmission is geared to deliver adequate power for the appropriate riding conditions.

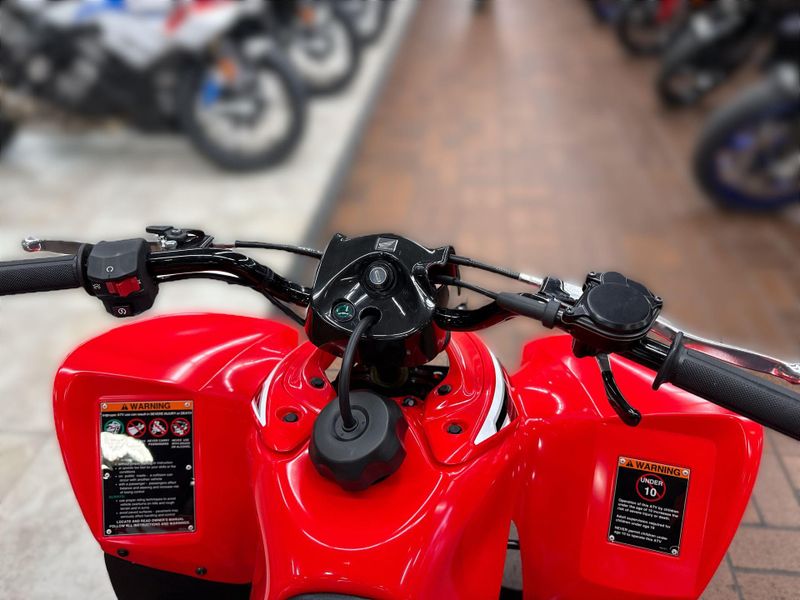

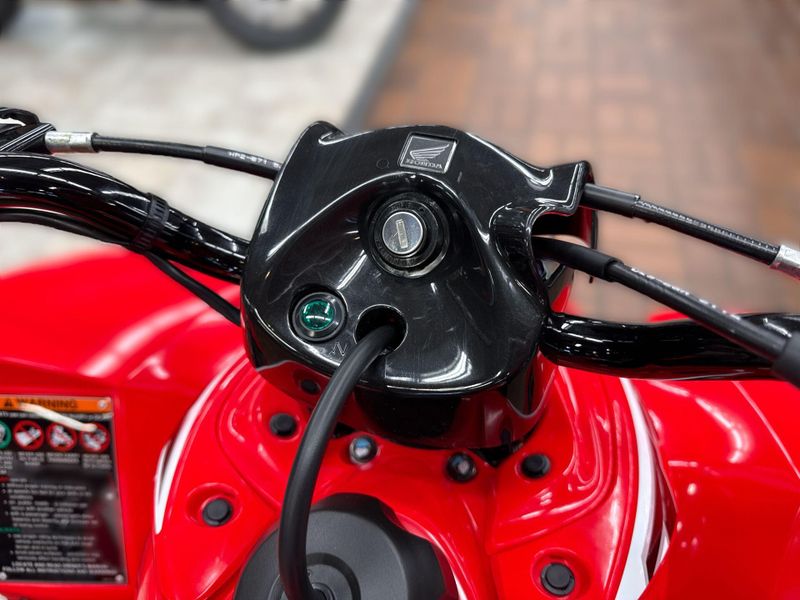

- Keyed ignition: Responsible fun is the name of the game. Since this ATV uses a keyed ignition, parents control who goes riding and when.

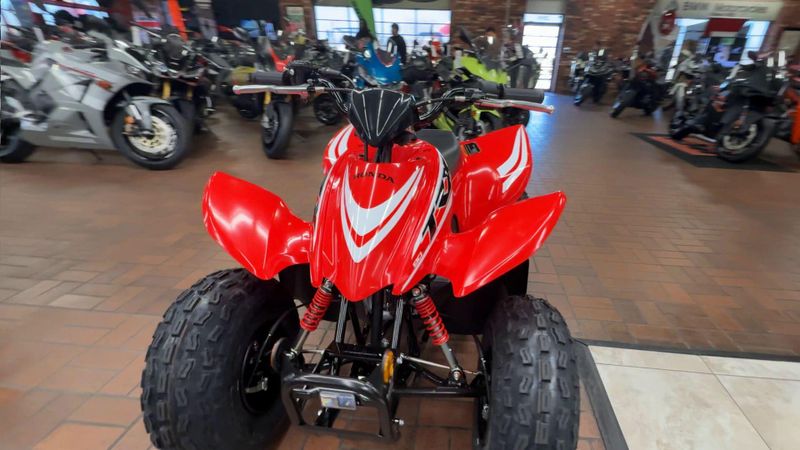

- Bump-absorbing front suspension: Up front, independent suspension features a pair of rugged shock absorbers with 2.6 inches of travel for a comfortable, controlled ride.
Engine
- Engine Type: 86cc air-cooled single-cylinder four-stroke
- Bore And Stroke: 47.0mm x 49.5mm
- Compression Ratio: 9.2:1
- Valve Train: OHV; two valves per cylinder
- Induction: 16mm piston-valve carburetor
- Starter: Electric
Drivetrain
- Transmission: Four-speed semi-automatic
- Driveline: #428 O-ring-sealed chain; 13T/50T
Chassis Suspension Brakes
- Front Suspension: Independent single A-arms; 2.6-inch travel

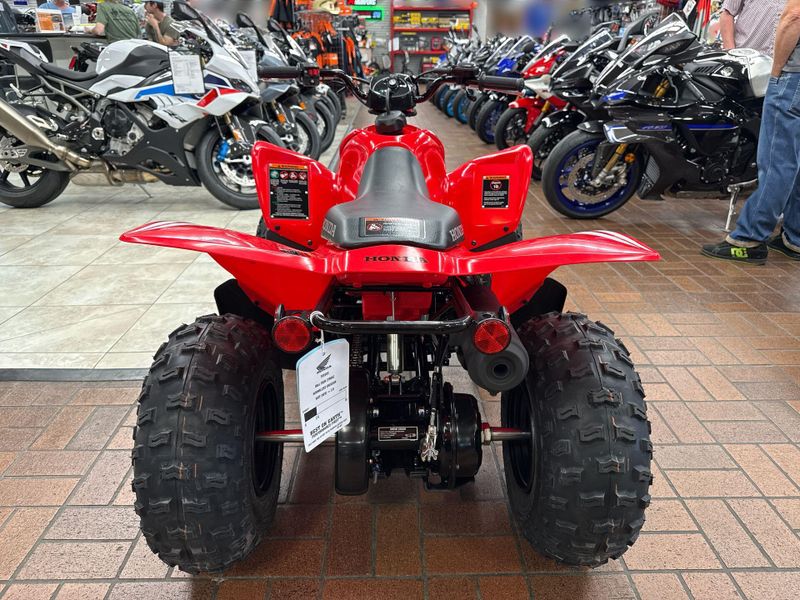

- Rear Suspension: Swingarm with single shock; 2.6-inch travel
- Front Brakes: Dual 110mm drums
- Rear Brake: 140mm drum

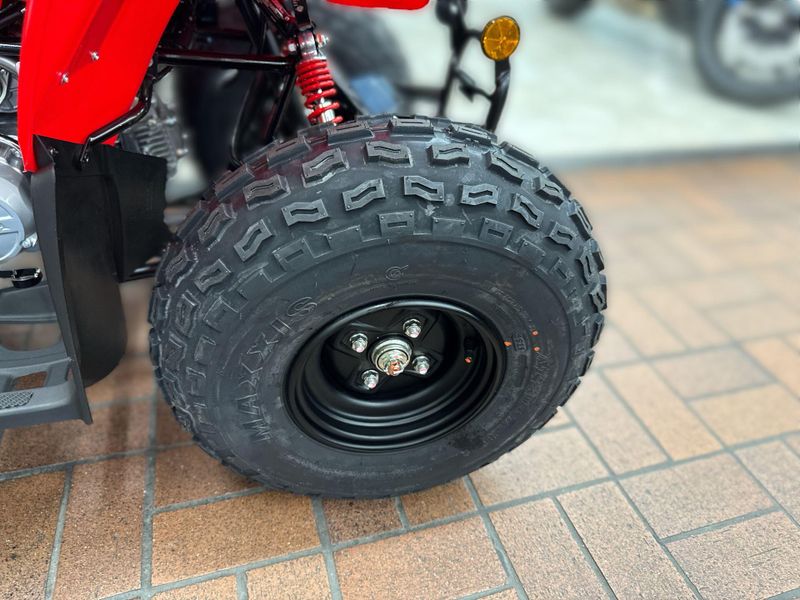

- Front Tires: 20 x 7-8
- Rear Tires: 19 x 8-8
Dimensions
- Length: 58.6 inches
- Width: 35.2 inches
- Height: 36.5 inches
- Wheelbase: 38.7 inches
- Seat Height: 26.0 inches
- Ground Clearance: 3.9 inches
- Curb Weight: 262 pounds (includes all standard equipment, required fluids and a full tank of fuel)
- Fuel Capacity: 1.7 gallons
- Turning Radius: 8.3 feet
Other
- Available Colors: Red
- Model ID: TRX90X

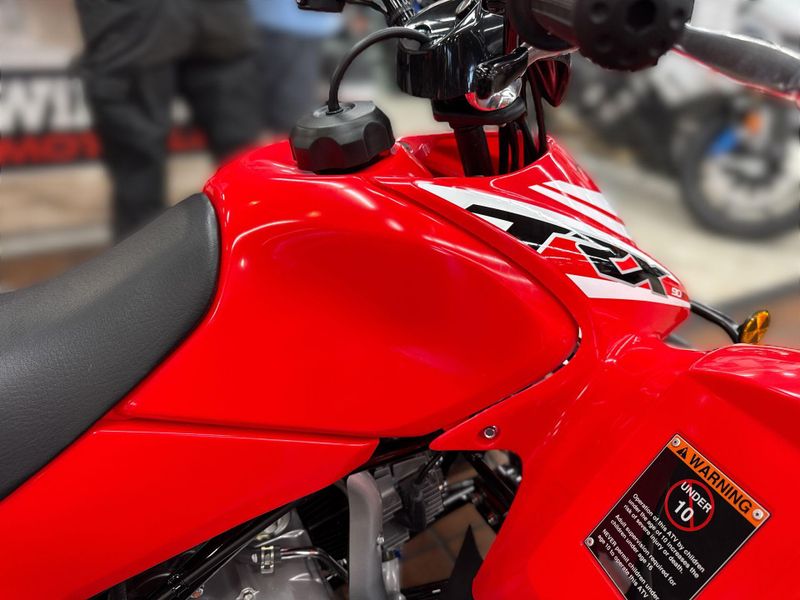

- Important Safety Information: Recommended for riders 10 years of age and older. Honda recommends that all ATV riders take a training course and thoroughly read their owner's manual. An adult must supervise TRX90X riders younger than 16 years of age.
Factory Warranty Information
- Duration: Transferable, one year included, limited warranty
- Optional Extended: Extended coverage available with a HondaCare® Protection Plan
