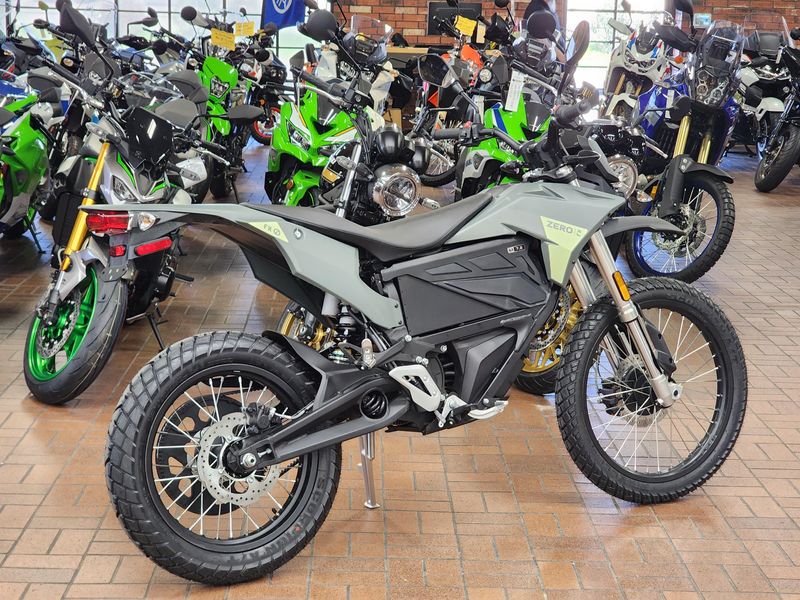

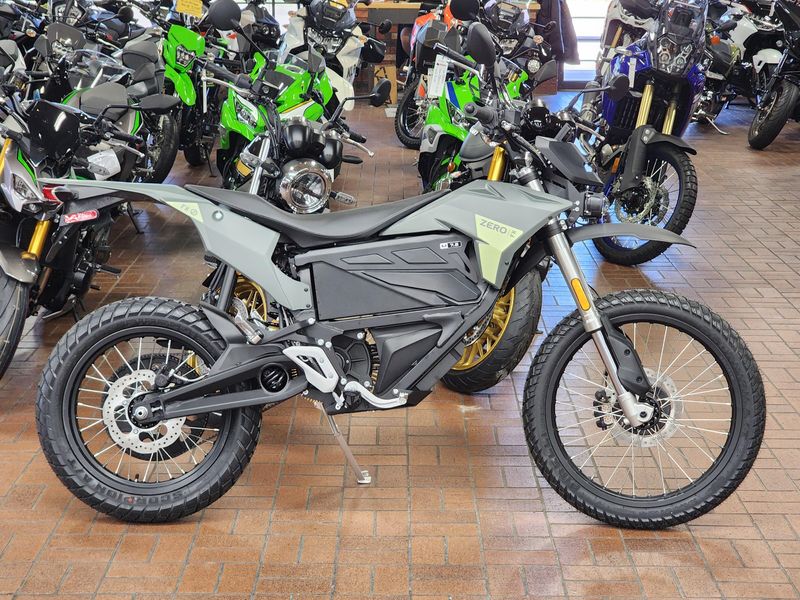

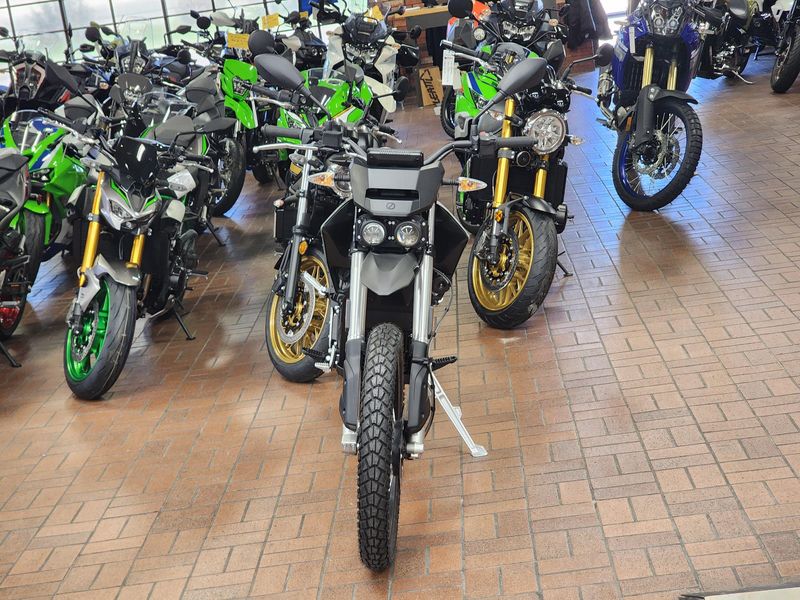

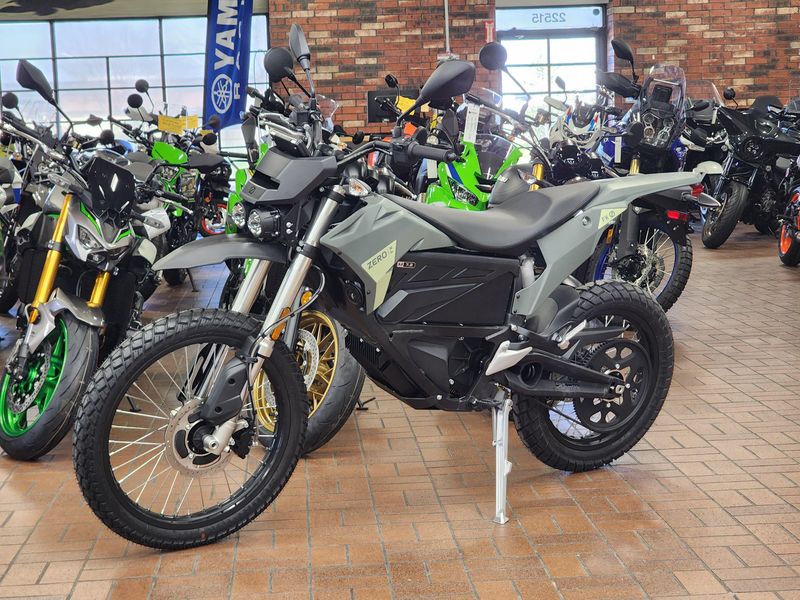

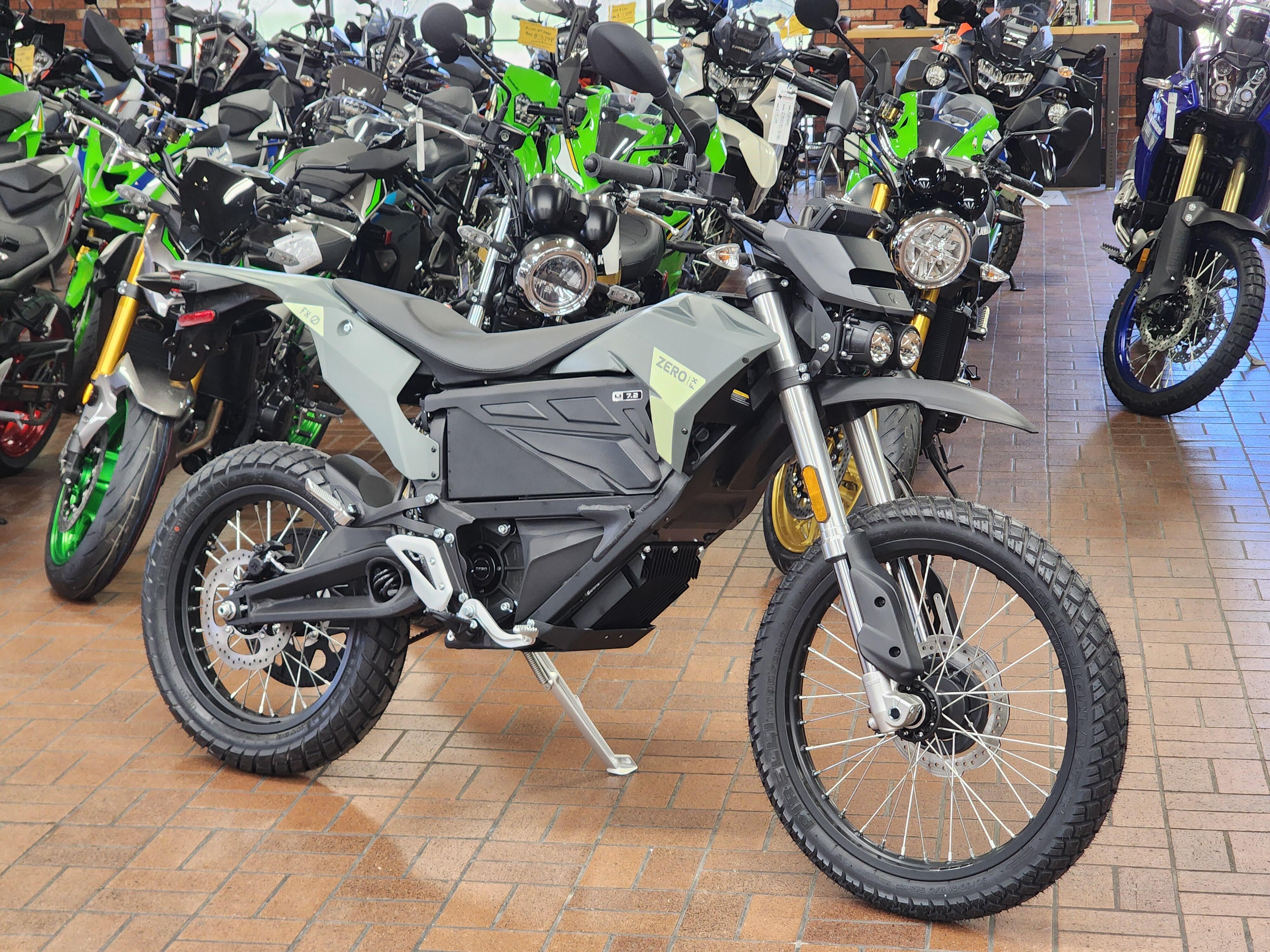

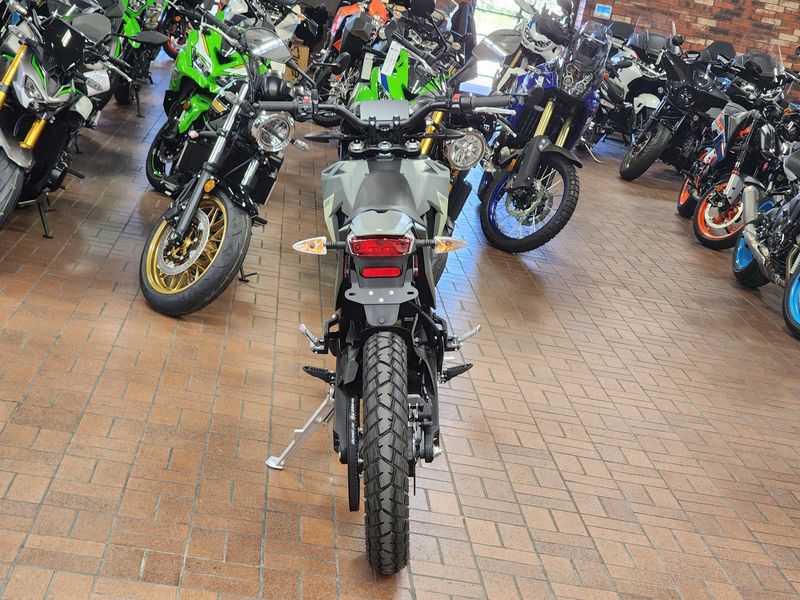

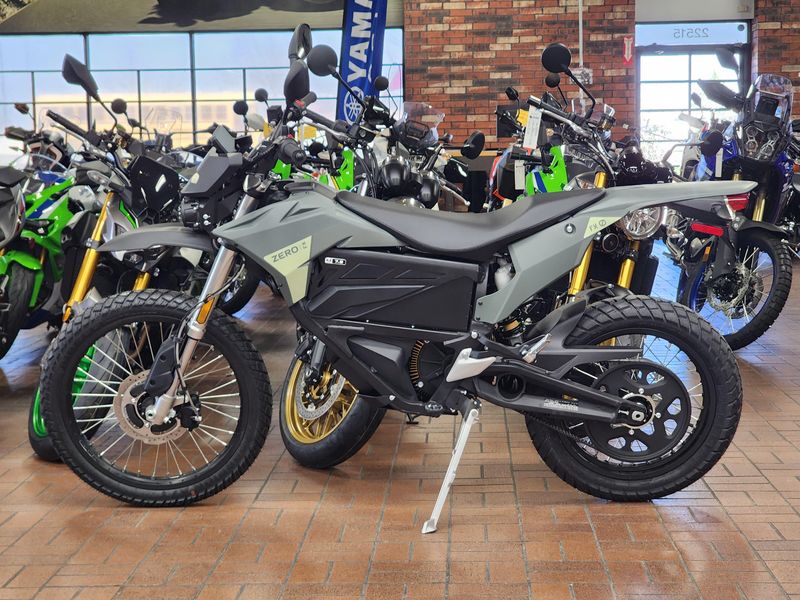

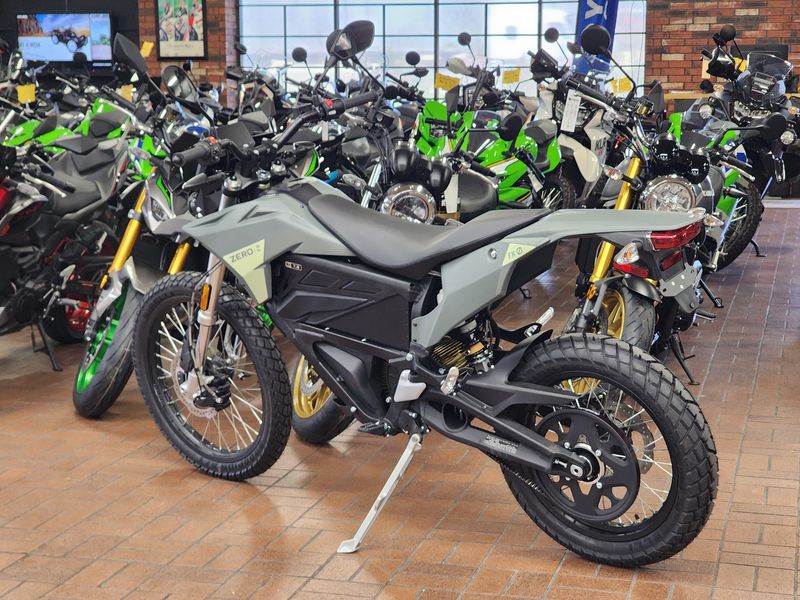

New 2025 Zero XMX FX NA INTEGRATED
Pricing Details
MSRP:
$12,495
Savings:
$1,000
Your Price:
$11,495
Vehicle Saved!
New 2025 Zero XMX FX NA INTEGRATED
Vehicle Details
- Stock #: ZM7604
- VIN: 538XXDZ40SC027604
- Mileage: 1
- Exterior Color: GREEN
Similar Vehicles
Frequently purchased together
Please select accessories from the list.
Click on the accessory link below to get more details.
Click on the accessory link below to get more details.
Lean and Mean
Unleash the exhilaration of all-terrain adventure with the Zero FX. Built on our rugged off-road heritage, it's primed for your favorite routes, ready to rocket away when the traffic lights change or the trails call. With its powerful Z-Force® powertrain, resilient suspension, and dual sport capabilities, the Zero FX fearlessly conquers any obstacle in its path. Get ready for an electrifying adventure with unstoppable performance on the Zero FX.
Highlighted Features

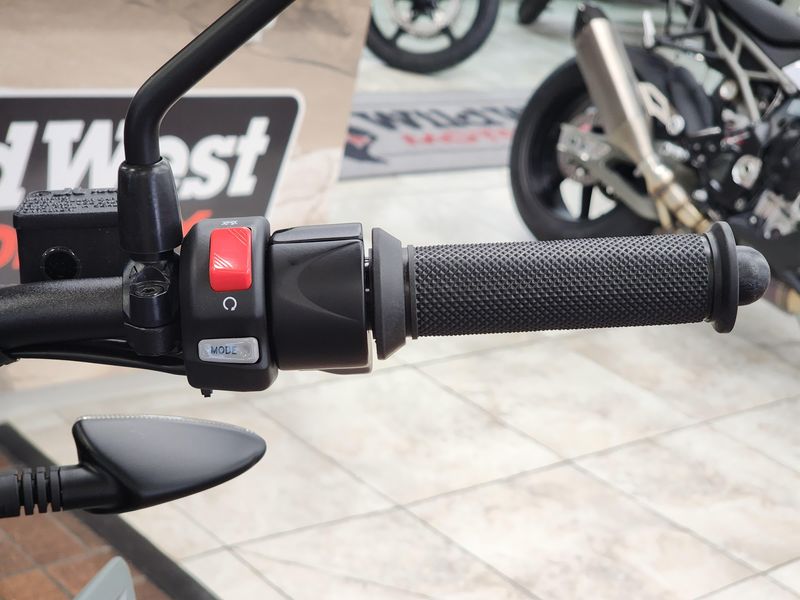

- Tuned in to your ride: Crossing from smooth asphalt to gravel fire roads? All good. Change performance profiles at the press of a button to master any terrain. The Zero FX is pre-programmed with Eco or Sport modes and performance can be fully customized using the Zero Motorcycles NextGen app where you can also see detailed ride stats.
- Charge Simply: Wake up, ready to ride, with a “full tank” every day — no high-power public charge station required. A simple 110 V household outlet satisfies all the needs of the Zero FX's 650-watt onboard charger. Every outlet is now a “fueling” station. Crave faster refills? Pick up an accessory Quick Charger to cut charge times by over 60%.
- CONTROL THROUGH CONNECTION: By pairing through your smartphone, the FX's full capabilities are unlocked with the Zero NextGen app. Data driven performance is at the tip of your finger when you can monitor everything about your FX from charge times, speed and regeneration levels, and so much more. Plus, the core architecture of the FX and NextGen app ecosystem are built on the Cypher II operating system so the potential for future feature availability is as wide open as the road ahead.
Range
- City: 102 miles (164 km)
- Low-Speed Highway Commuting: 65 miles (104 km)
- High-Speed Highway Commuting: 57 miles (92 km)
Motor
- Peak torque: 78 ft-lb (106 Nm)
- Peak power: 46 hp (34 kW) @ 4,300 rpm
- Top speed (max): 85 mph (137 km/h)
- Top speed (sustained): 70 mph (113 km/h)
- Type: Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
- Controller: High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration
Power system

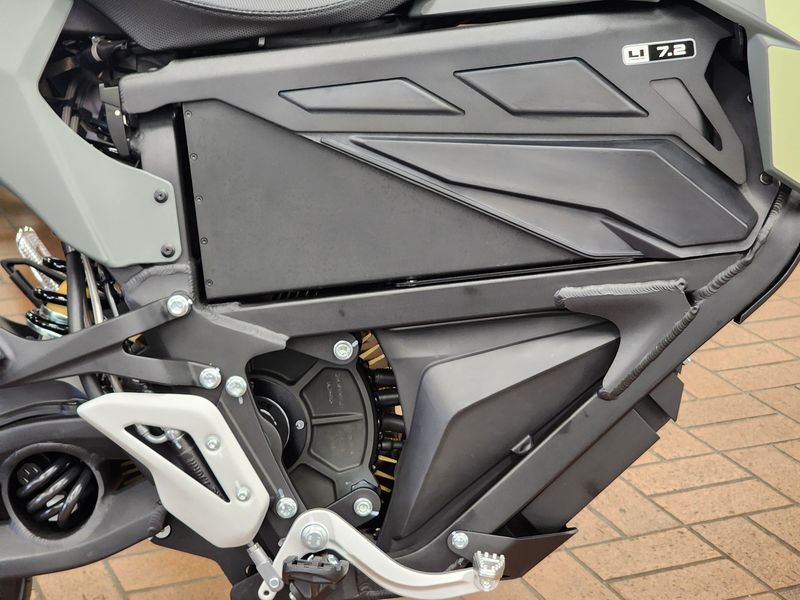

- Power pack: Z-Force® Li-Ion intelligent integrated
- Max capacity: 7.2 kWh
- Nominal capacity: 6.3 kWh
- Charger type: 650 W, integrated
- Charge time (standard): 9.7 hours (100% charged) / 9.2 hours (95% charged)
- — With one accessory charger: 4.1 hours (100% charged) / 3.6 hours (95% charged)
- — With max accessory chargers: 1.8 hours (100% charged) / 1.3 hours (95% charged)
- Input: Standard 110 V or 220 V
Drivetrain
- Transmission: Clutchless direct drive
- Final drive: 90T / 18T, Poly Chain® HTD® Carbon™ belt
Chassis / Suspension / Brakes
- Front suspension: Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
- Rear suspension: Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
- Front suspension travel: 8.60 in (218 mm)
- Rear suspension travel: 8.94 in (227 mm)
- Front brakes: Bosch Gen 9 ABS, J-Juan dual piston floating caliper, 240 x 4.5 mm disc
- Rear brakes: Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc

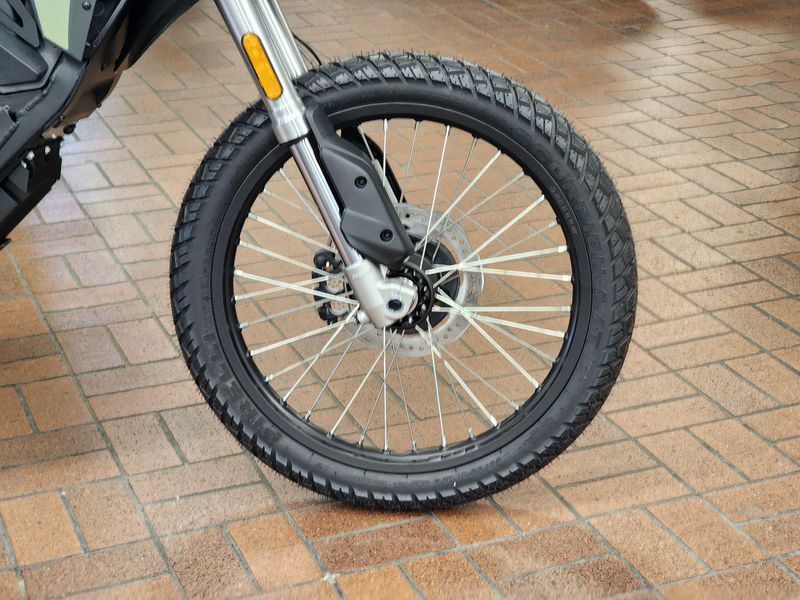

- Front tire: Pirelli Scorpion MT 90 A/T 90/90-21

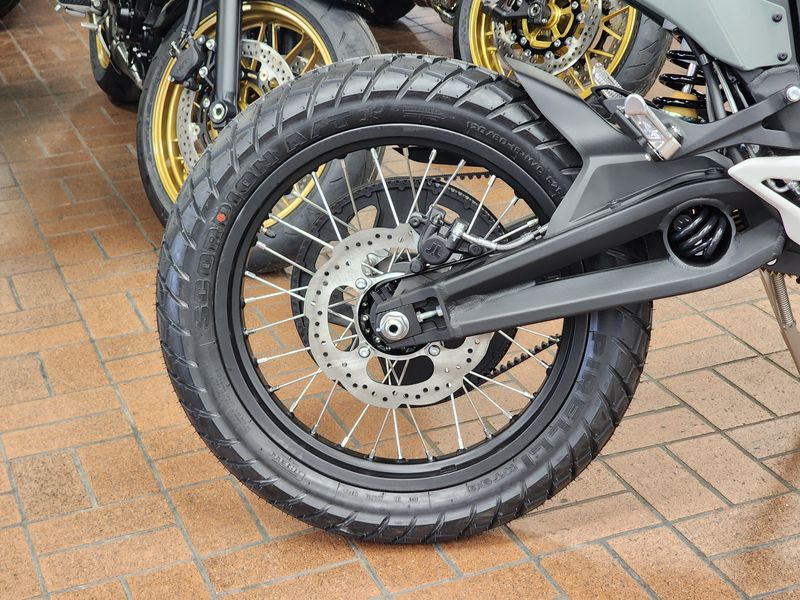

- Rear tire: Pirelli Scorpion MT 90 A/T 120/80-18
- Front wheel: 1.85 x 21
- Rear wheel: 2.50 x 18
Dimensions
- Wheelbase: 56.6 in (1,438 mm)
- Seat height: 34.7 in (881 mm)
- Rake: 25.4°
- Trail: 4.1 in (104 mm)
Weight
- Curb weight: 289 lb (131 kg)
- Carrying capacity: 341 lb (155 kg)
Economy
- Equivalent fuel economy (city): 544 MPGe (0.43 l/100 km)
- Typical cost to recharge: $0.81
Pricing
- MSRP: $12,495
Warranty
- Standard motorcycle warranty*: 2 years
- Power pack warranty*: 5 years/unlimited miles
