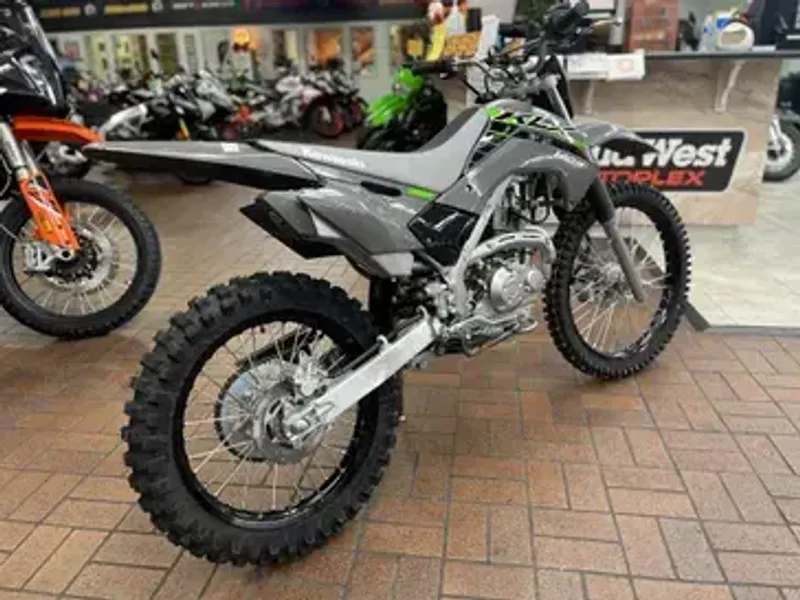

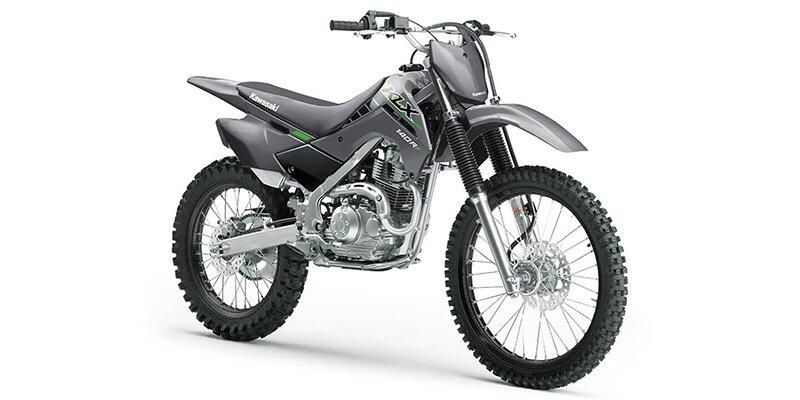

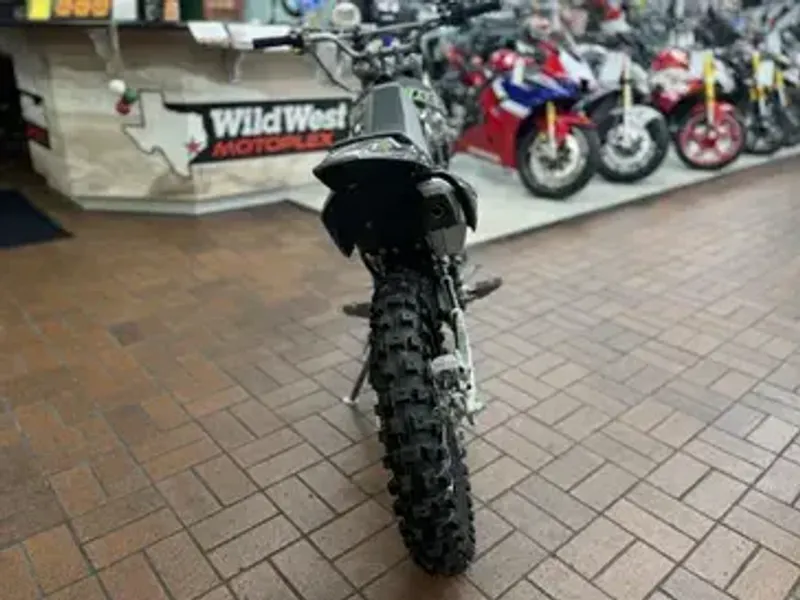

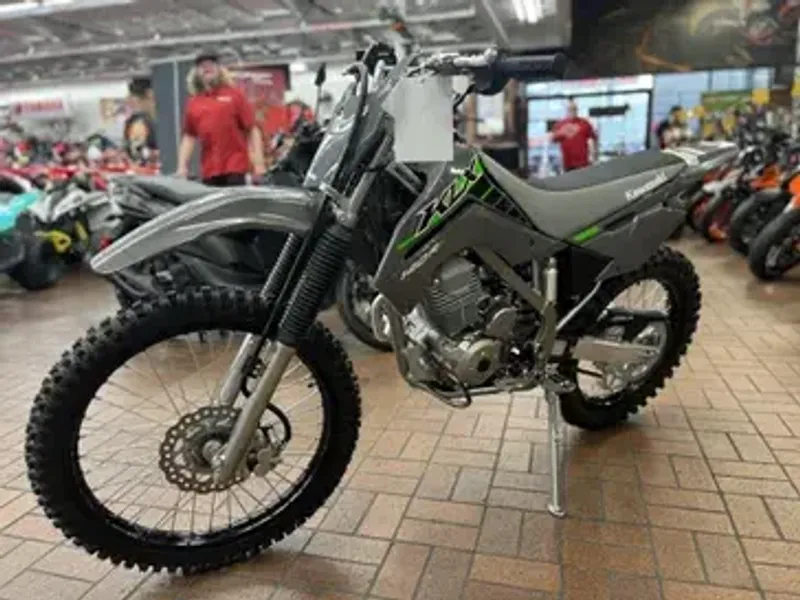

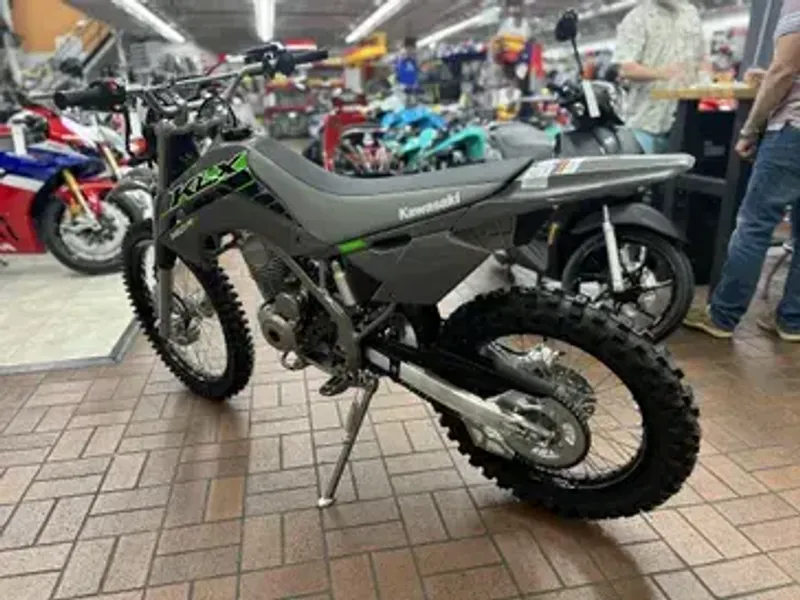

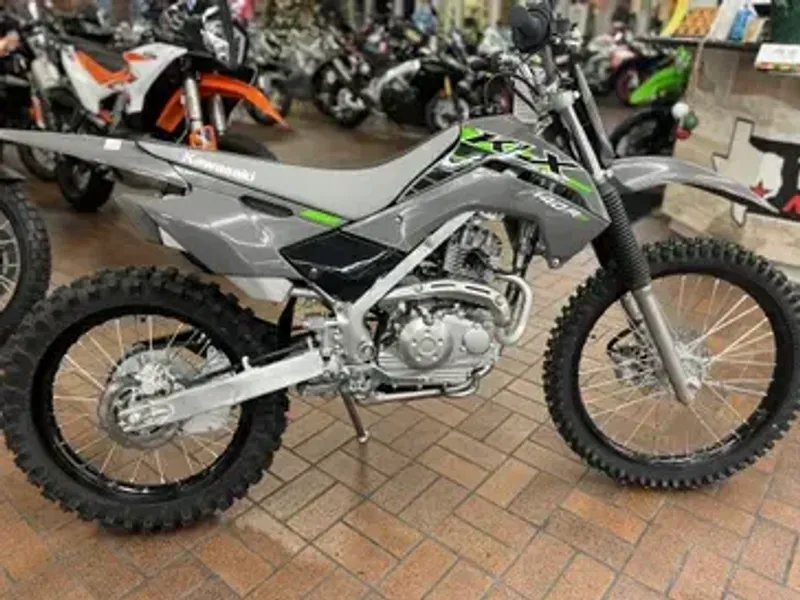

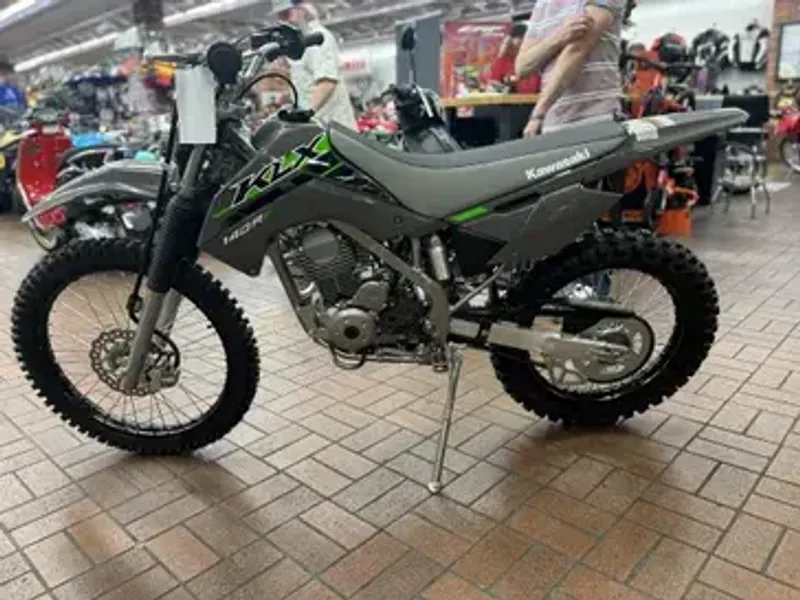

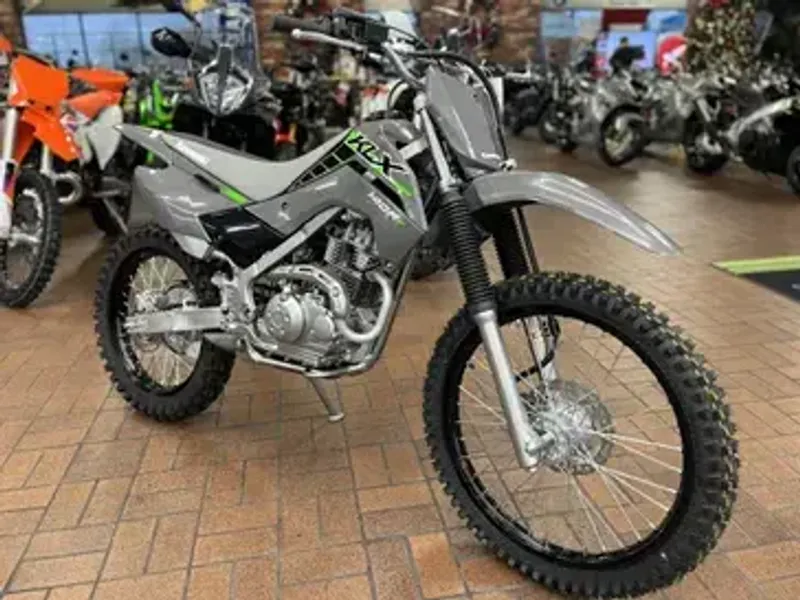

New 2025 Kawasaki KLX 140R F
Vehicle Details
- Stock #: KM1471
- VIN: MH4LXDC15SJP01471
- Engine: 4-stroke, single-cylinder, SOHC, air-cooled
- Exterior Color: GRAY
Similar Vehicles
OFF-ROAD LIKE NEVER BEFORE
Featuring confident handling, KLX®140R motorcycles are the ideal entry into off-road riding. The easy-to-ride KLX140R lineup offers a 144cc engine, plush suspension and push button electric start, making for great trailblazers.
- Full-size wheels (21-in front, 18-in rear) and 12.4-in ground clearance
- Adjustable long-travel suspension
Highlighted Features
- CONFIDENT HANDLING: LIGHTWEIGHT RIGID FRAME A lightweight box-section perimeter frame made from high-tensile steel provides exceptional rigidity and strength. The narrow profile contributes to an easier rider grip and smoother movement on the bike. Working together, the highly capable suspension and lightweight chassis deliver handling that exudes confidence. The KLX®140R L trail bike features large wheels (19-in front, 16-in rear), tall seat height (31.5-in) and high ground clearance (10-in), while the KLX®140R F trail bike features full-size wheels (21-in front, 18-in rear) and 12.4-in ground clearance.
- SMOOTH POWER: ELECTRIC START The high-revving, 144cc, air-cooled SOHC 4-stroke engine easily starts with the push of a button. Air-cooling eliminates the need for radiators, keeping the chassis slim and lightweight while a 5-speed transmission with manual clutch delivers smooth shifting and acceleration.
- RELIABLE BRAKING: FRONT AND REAR DISC BRAKES Front and rear disc brakes provide strong progressive stopping power. The 220mm front petal disc with a dual-piston caliper is complemented by a 186mm rear petal disc with single-piston caliper, inspiring confidence on the trails.
POWER
- Engine: 4-stroke, single-cylinder, SOHC, air-cooled
- Displacement: 144cc
- Bore x Stroke: 58.0 x 54.4mm
- Compression Ratio: 9.5:1
- Fuel System: Keihin PB20 carburetor
- Ignition: Digital DC-CDI
- Transmission: 5-speed, return shift, with wet multi-disc manual clutch
- Final Drive: Chain
PERFORMANCE
- Front Suspension / Wheel Travel: 33mm telescopic fork/7.5 in
- Rear Suspension / Wheel Travel: Uni-Trak® linkage system and single shock with piggyback reservoir, 20-way rebound damping and threaded preload adjustability/7.9 in
- Front Tire: 2.75 x 21
- Rear Tire: 4.10 x 18
- Front Brakes: Single 220mm petal disc with a dual-piston caliper
- Rear Brakes: Single 186mm petal disc with single-piston caliper
DETAILS
- Frame Type: High-tensile steel, box-section perimeter
- Rake/Trail: 27.0°/4.6 in
- Overall Length: 78.9 in
- Overall Width: 31.1 in
- Overall Height: 44.7 in
- Ground Clearance: 12.4 in
- Seat Height: 33.9 in
- Curb Weight: 218.2 lb*
- Fuel Capacity: 1.5 gal
- Wheelbase: 52.4 in
- Color Choices: Lime Green, Battle Gray
