New 2025 KTM 350 XC-F
Vehicle Details
- Stock #: KT9058
- VIN: VBKXCP435SM229058
- Engine: 349.7 cc (21.3 ci) Liquid cooled Single-Cylinder
- Exterior Color: ORANGE
- Transmission: Manual
Similar Vehicles
Frequently purchased together
Please select accessories from the list.
Click on the accessory link below to get more details.
Click on the accessory link below to get more details.

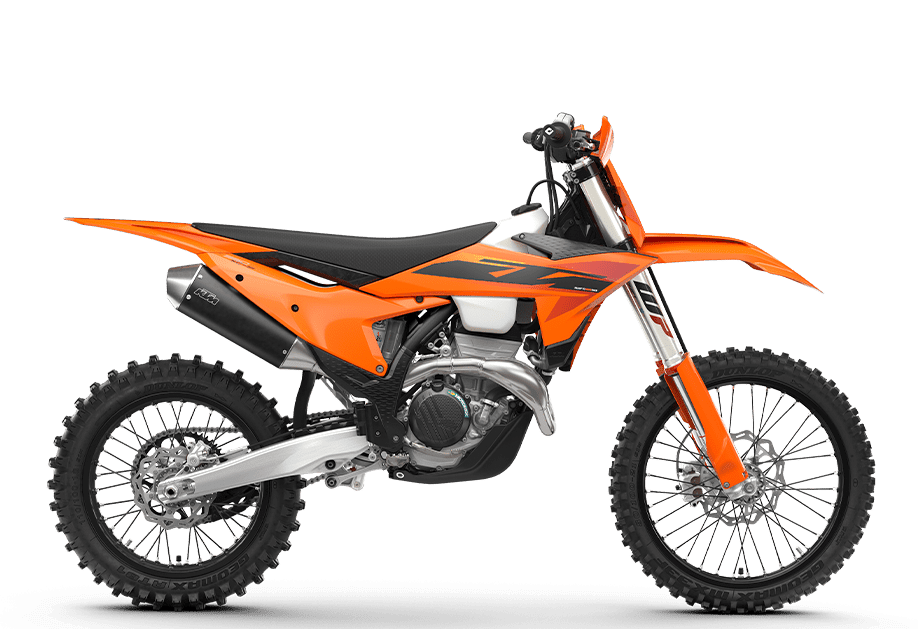

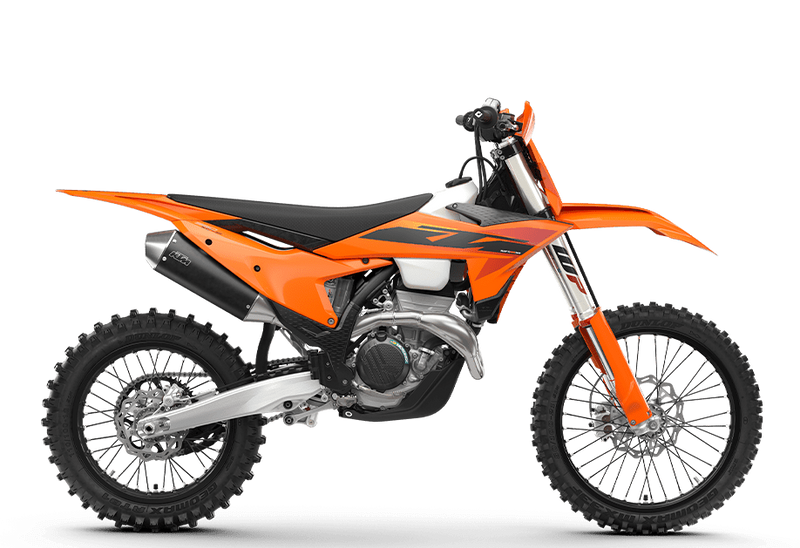

2025 KTM 350 XC-F
What is there to say about the KTM 350 XC-F that hasn't already been said? Well, for starters, the 2025 KTM 350 XC-F takes everything great about previous generations and makes it even better. With a reworked frame, new airbox, new swingarm, improved suspension settings, and the same usable performance, the 2025 KTM 350 XC-F is ready to take up the challenge - and the lead.
Highlighted Features
- Easy Suspension Adjustment: The 2025 KTM XC and XC-F range took their already awesome suspension package and turned it up to 11. The WP XACT Closed Cartridge spring forks and WP XACT rear shock has been updated, with reworked settings and alterations to improve weight distribution and increase overall response. As always, the suspension boasts an easy tool-free setup at both ends, ensuring you chase down the podium in total control. On the rear, a hand-adjustable dual compression control allows riders to adjust high- and low-speed settings in a matter of seconds. The forks on the front end are also easily adjusted thanks to hand-adjustable clickers on the bottom of the fork shoe and top cap.
- More Usable Power: Perfectly filling the gap between the KTM 250 XC-F and the powerhouse KTM 450 XC-F, the lightweight KTM 350 XC-F powerplant rules the roost in a class of its own. Designed and tuned to provide the best performance and handling characteristics possible, the DOHC engine delivers endless mid-range and the top-end power together with the benefits of mass centralization and ideal anti-squat behavior. With 450-rivalling performance and an overall engine weight of only 60.6 lb, you'll leave the competition with more than a little mud on the face.
- Absolute Control: No matter how gnarly the trail is, you'll stay in control thanks to a rider-focussed frame design that has not only been engineered for longitudinal rigidity, but also positions rotating mass as close as possible to the center of gravity. Thick frame walls also improve reliability, flex characteristics and offer unmatched rider feel. The shock mounting also provides the perfect amount of anti-squat for better traction out of corners, while the footpeg mounting position reduces the risk of hooking up on roots or rocks. Additionally, forged brackets on the lower frame rails allow for easy installation of the skid plate.
ENGINE
- Transmission: 6-speed
- Starter: Electric starter
- Stroke: 57.5 mm
- Bore: 88 mm
- Clutch: Wet multi-disc DS clutch, Brembo hydraulics
- Compression ratio: 14.6
- Displacement: 349.7 cm³
- EMS: Keihin EMS
- Design: 1-cylinder, 4-stroke engine
- Fuel-mixture generation: Keihin EFI, throttle body 44 mm
CHASSIS
- Weight (without fuel): 104.2 kg
- Tank capacity (approx.): 8.5 l
- Wheelbase: 1493 mm
- Front brake disc diameter: 260 mm
- Rear brake disc diameter: 220 mm
- Front brake: Disc brake
- Rear brake: Disc brake
- Chain: 520 X-Ring
- Frame design: Central double-cradle-type 25CrMo4 steel
- Front suspension: WP USD closed cartridge Ø 48 mm
- Ground clearance: 343 mm
- Handlebar: Neken, aluminium Ø 28/22 mm
- Rear suspension: WP XACT Monoshock with linkage
- Seat height: 954 mm
- Silencer: Aluminium
- Steering head angle: 63.9 °
- Rear subframe design: Aluminum-reinforced polyamide
- Suspension travel (front): 300 mm
- Suspension travel (rear): 300 mm
- Wheels: Spoked wheels with aluminium rims
