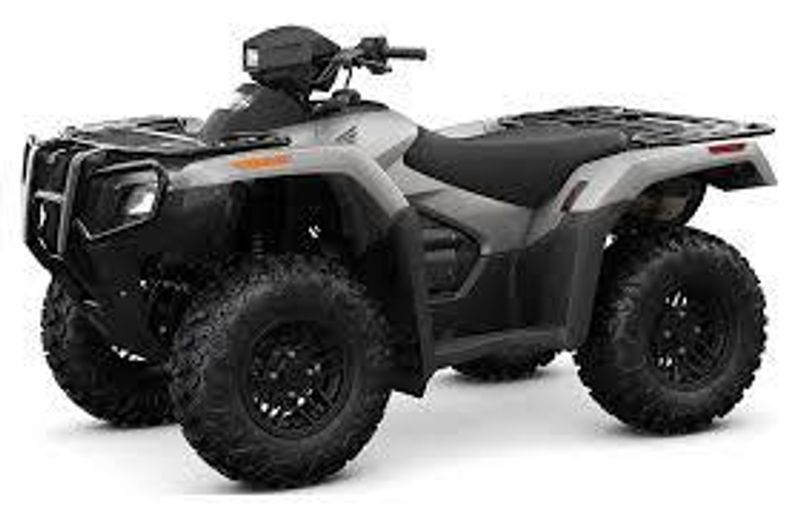

New 2025 Honda RUBICON 700
Vehicle Details
- Stock #: HA0512
- VIN: 1HFTE332XSJ100512
- Engine: 675cc longitudinally mounted liquid-cooled single-cylinder four-stroke
- Exterior Color: SILVER
- Drive: Selectable 4X2 / 4X4
Similar Vehicles
Work harder, adventure further
The FourTrax Rubicon 700 4x4 Automatic is more than an ATV — it’s your ultimate off-road partner. With a powerful 675cc liquid-cooled engine, rugged automotive-style transmission, TraxLok® 4WD, and fully independent suspension, it’s built to tackle the toughest trails and hardest jobs. Push further. Work harder. Experience off-road like never before.
Highlighted Feature
- Semi-dry-sump engine design: Compact and lighter weight, the overhead-valve, semi-dry-sump design creates a shorter engine from top to bottom. This has two big benefits: it enhances handling by lowering the center of gravity and allows for greater ground clearance.
- Independent Rear Suspension (IRS): The Independent Rear Suspension (IRS) offers two big advantages: First, it helps ensure constant tire contact with the ground for superior traction; second, it gives you an ultra-smooth ride over rough terrain, so you don't get beat up on the trail.
- Automatic transmission: There is no need to worry about slipping belts or wearing clutches—it comes with an automotive-style three-speed automatic transmission, just like a truck's. You can rely on it for a smooth ride and trouble-free service for years.
- TraxLok®: offers two-wheel drive and four-wheel drive modes. Lighter steering on flat terrain is provided by two-wheel drive, while four-wheel drive maximizes traction. Switching between modes is easy, offering the best of both worlds.
Engine
- Engine Type: 675cc longitudinally mounted liquid-cooled single-cylinder four-stroke
- Bore And Stroke: 102.0mm x 82.6mm
- Ignition: 9.2:1
- Valve Train: OHC; four valves per cylinder
- Induction: Electronic fuel injection (PGM-FI); 40mm throttle body
- Starter: Electric with auxiliary recoil
Drive Train
- Transmission: Automatic with hydraulic torque converter; three forward gears, reverse, and electronic controls
- Driveline: Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential
Chassis Suspension Brakes
- Front Suspension: Independent double-wishbone; 6.9-inch travel
- Rear Suspension: Independent dual-arm; 8.0-inch travel
- Front Brakes: Dual 180mm discs
- Rear Brakes: 170mm disc
- Front Tires: 26 x 8-12
- Rear Tires: 26 x 10-12
Dimensions
- Length: 86.5 inches
- Width: 47.5 inches
- Height: 48.0 inches
- Wheelbase: 50.6 inches
- Seat Height: 34.8 inches
- Ground Clearance: 9.5 inches
- Curb Weight: 701 pounds (includes all standard equipment, required fluids and a full tank of fuel)
- Fuel Capacity: 4.4 gallons, including 1.2-gallon reserve
- Turning Radius: 10.8 feet
- Towing Capacity: 848 pounds
- Front Rack Capacity: 99 pounds
- Rear Rack Capacity: 187 pounds
Other
- Available Colors: Hero Red; Matte Silver Metallic
- Model ID: TRX700FA
- Emissions: Meets current EPA off-road emissions standards. Not available in California or for California use.
- Important Safety Information: Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner’s manual thoroughly.
Factory Warranty Information
- Duration: Transferable, limited warranty
- Optional Extended: Extended coverage available with a HondaCare® Protection Plan
Disclaimer
Prices shown are not final and do not include sales tax, finance charges, vehicle registration fees, or any other fees required by law. Prices may be subject to changing incentives. If applicable, incentives may require a trade-in, financing, or other specific qualifications and restrictions. Reasonable efforts are made to keep information on this website accurate, but Dealer and/or its affiliates do not assume responsibility for omissions or for misprints or other errors displayed on this website. EPA mileage estimates are for newly manufactured vehicles only, so actual mileage will depend on how the vehicle is driven and maintained.
