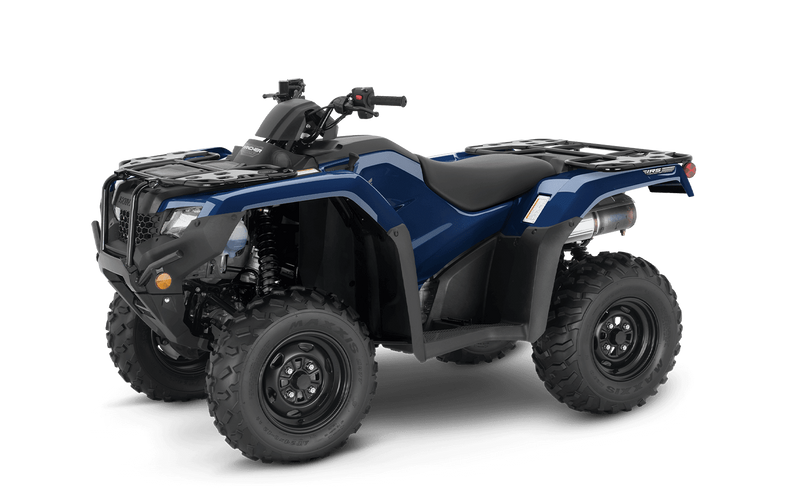

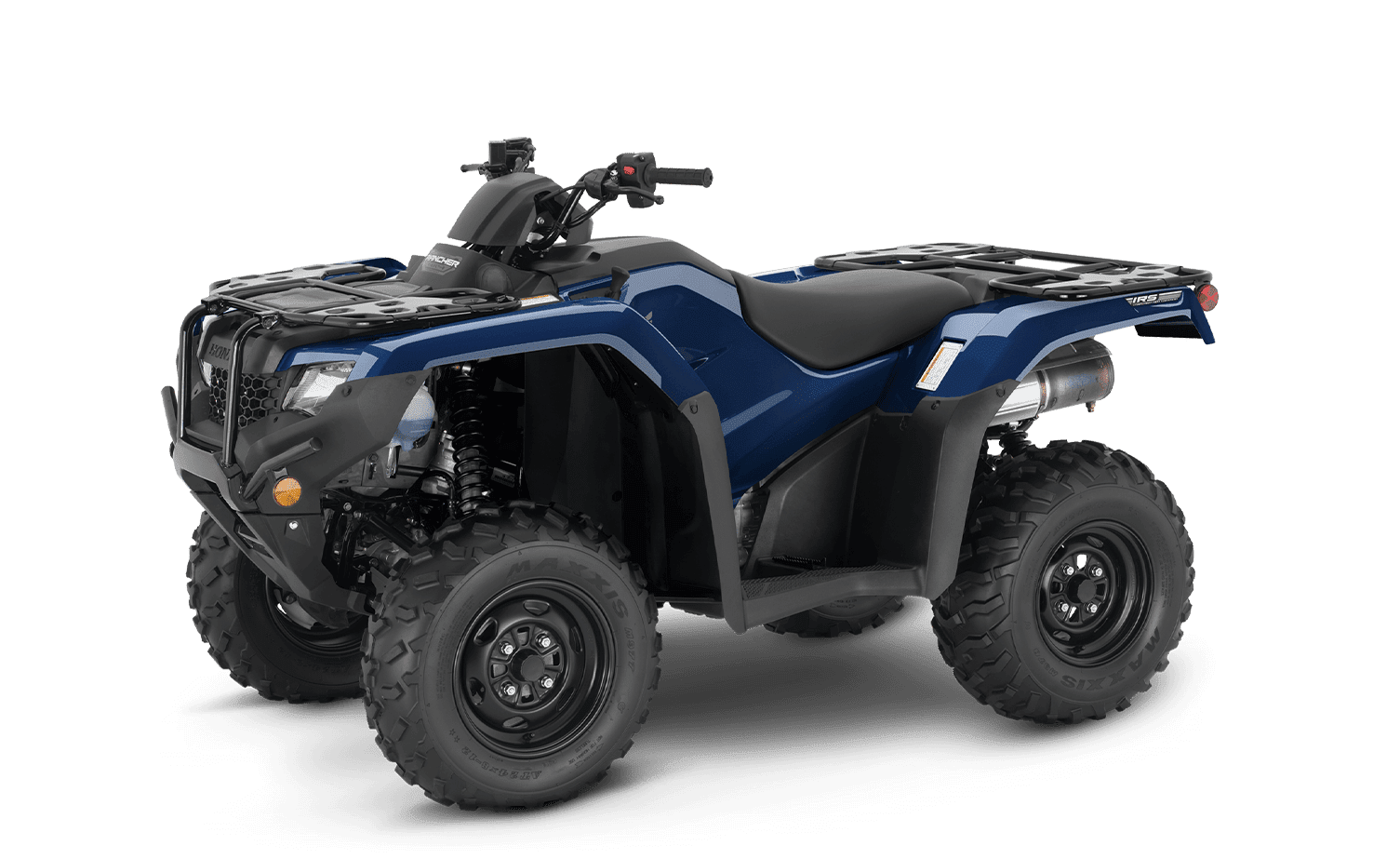

New 2025 Honda RANCHER 4X4 AT IRS EPS
Vehicle Details
- Stock #: HA0518
- VIN: 1HFTE4720SJ100518
- Engine: 420 cc (25.6 ci) Liquid cooled Single-Cylinder
- Exterior Color: BLUE
- Transmission: Manual / Automatic Clutch
Similar Vehicles
Frequently purchased together
Please select accessories from the list.
Click on the accessory link below to get more details.
Click on the accessory link below to get more details.
Adventure, tailored to you
Our lineup of FourTrax Rancher ATVs is unbeatable. With eight models, there’s a perfect fit for every need and budget, renowned for their durability, toughness, and reliability. Choose a Rancher for excellence without exception.
- 420cc liquid-cooled fuel-injected OHV single-cylinder four-stroke engine
- Programmed Fuel Injection (PGM-FI)
- Swingarm rear suspension
- Variety of color choices
- Comfortable seat
Highlighted Features
- Longitudinal engine layout: By orienting the crankshaft front to back in the chassis, we route the flow of power straight to the wheels without any unnecessary right-angle detours, reducing powertrain friction and putting more grunt to the ground.
- Front/rear cargo racks: Unlock limitless versatility with our rugged steel racks. They're designed for easy attachment and removal of Honda Pro-Connect cargo boxes and accessories, giving you added functionality.
- 1.9-liter front utility box: It's the perfect size for small items you want to access quickly—like a cell phone, GPS, or gloves.
Engine
- Engine Type: 420cc longitudinally mounted liquid-cooled wet-sump single-cylinder four-stroke
- Bore And Stroke: 86.5mm x 71.5mm
- Compression Ratio: 9.9:1
- Valve Train: OHV; two valves per cylinder
- Induction: Programmed Fuel Injection (PGM-FI); 34mm throttle body
- Starter: Electric with optional auxiliary recoil
Drive Train
- Clutch: Automatic
- Transmission: Five-speed automatic Dual-Clutch Transmission (DCT) with reverse
- Driveline: Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential
Chassis Suspension Brakes
- Front Suspension: Independent double-wishbone; 7.3-inch travel
- Rear Suspension: Independent dual-arm; 8.5-inch travel
- Front Brake: Dual 193mm discs
- Rear Brake: Dual 170mm discs
- Front Tires: 24 x 8-12
- Rear Tires: 24 x 10-12
Dimensions
- Length: 84.5 inches
- Width: 47.4 inches
- Height: 47.2 inches
- Wheelbase: 51.0 inches
- Seat Height: 35.4 inches
- Ground Clearance: 9.6 inches
- Curb Weight: 686 pounds (includes all standard equipment, required fluids and a full tank of fuel)
- Fuel Capacity: 3.9 gallons, including 1.3-gallon reserve
- Turning Radius: 11.5 feet
- Front Rack Capacity: 66 pounds
- Rear Rack Capacity: 133 pounds
Other
- Model ID: TRX420FA6
- Emissions: Meets current EPA and CARB (California) off-road emissions standards.
- Available Colors: Hero Red, Blue, TrueTimber® Atera Camo
- Important Safety Information: Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
Factory Warranty Information
- One Year Included: Transferable, limited warranty
- Optional Extended: Extended coverage available with a HondaCare® Protection Plan
