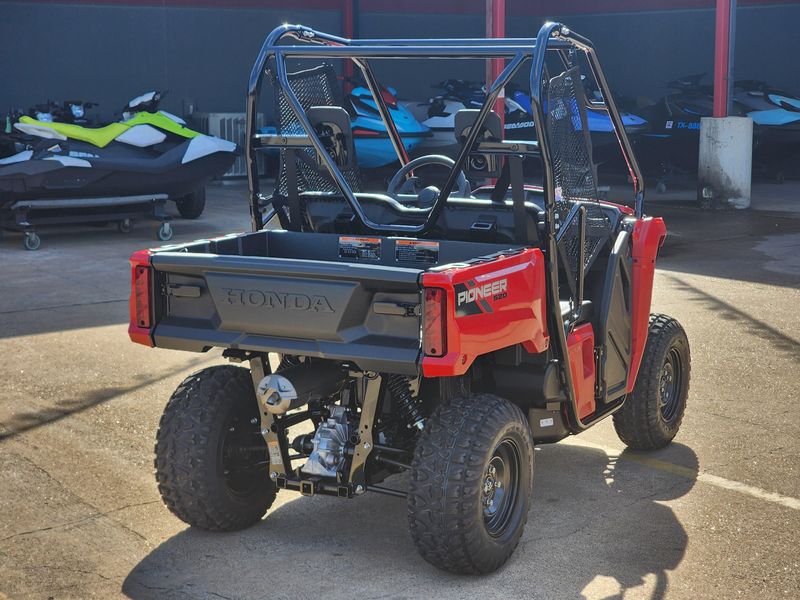

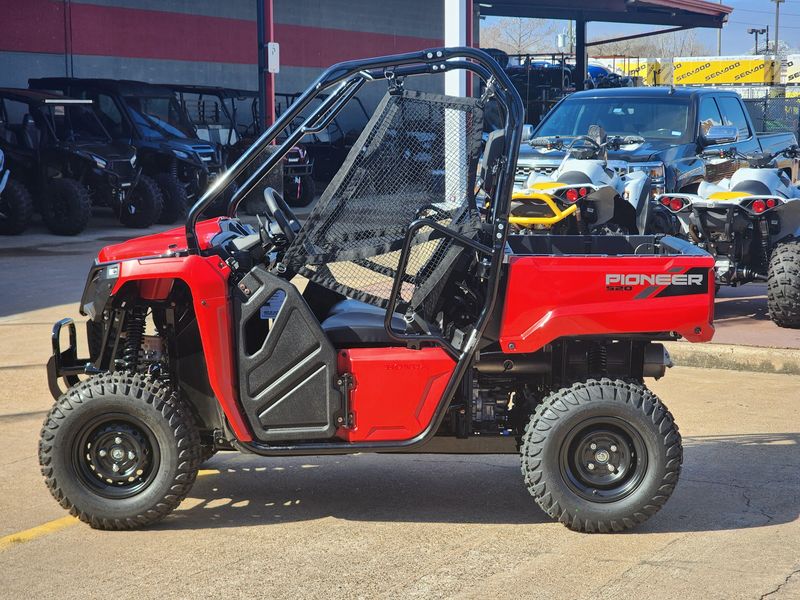

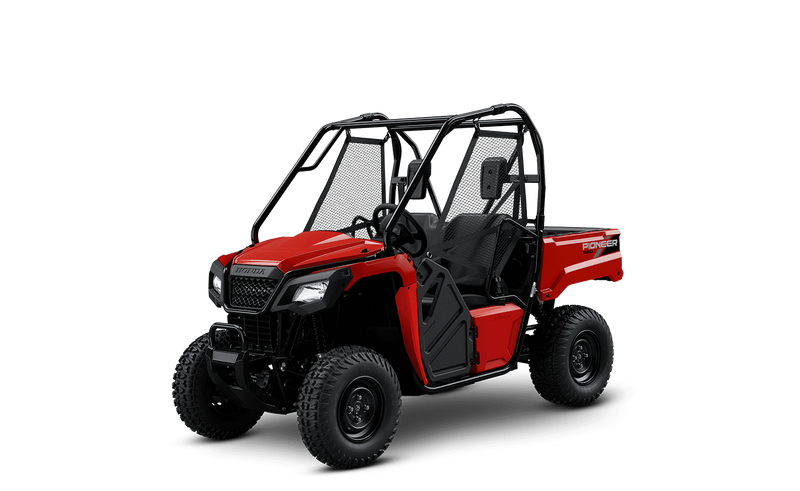

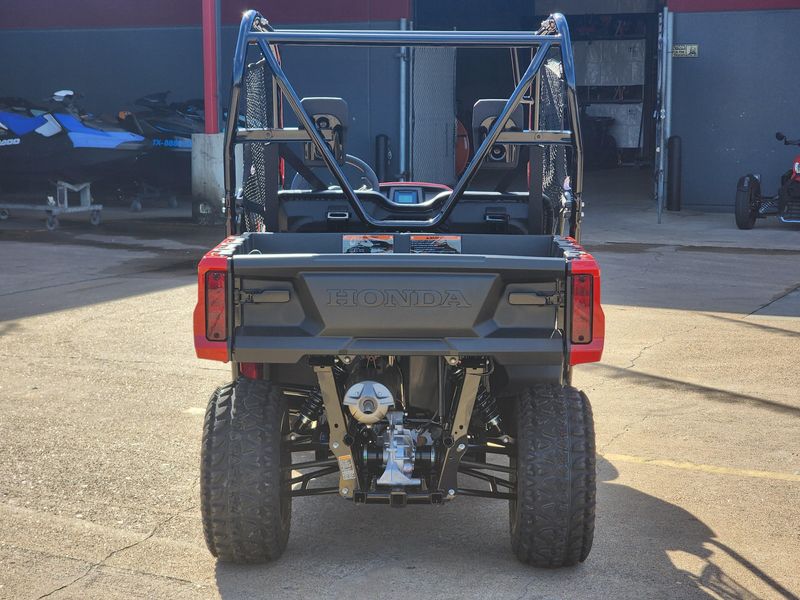

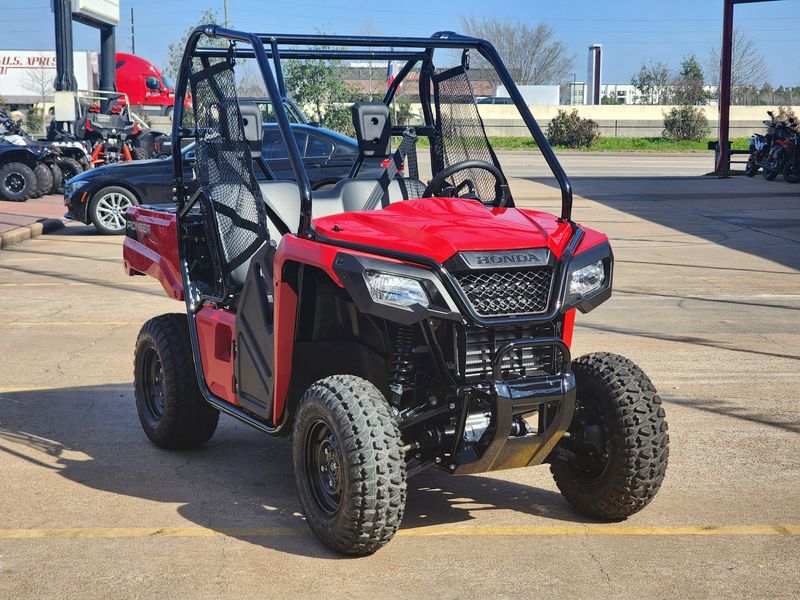

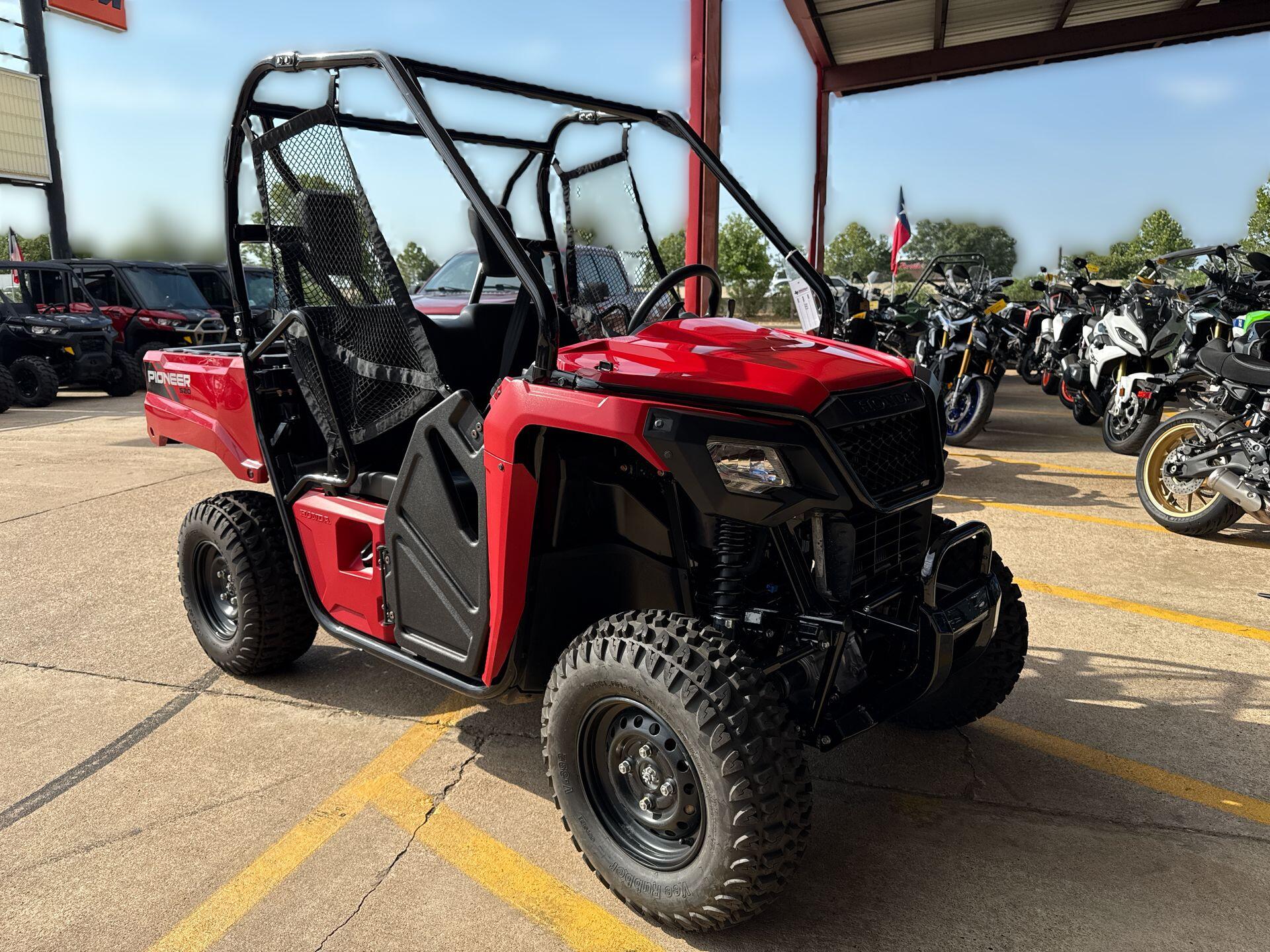

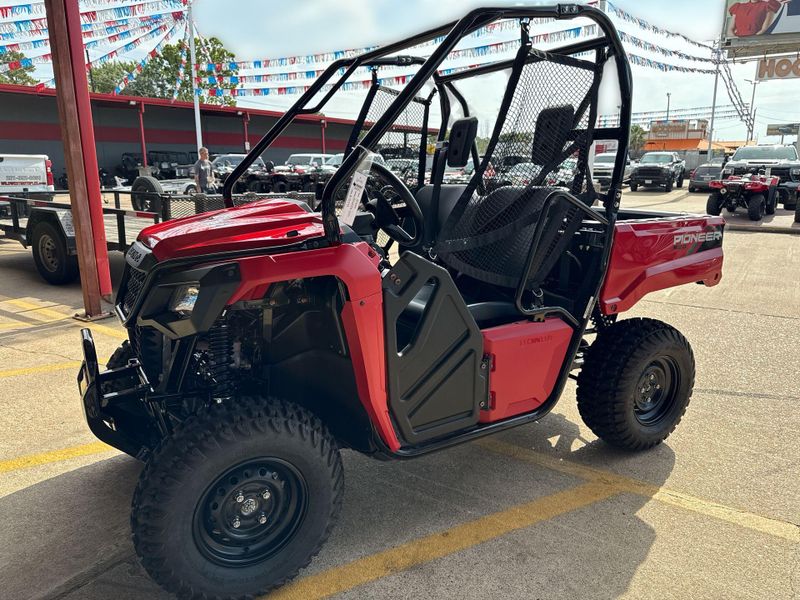

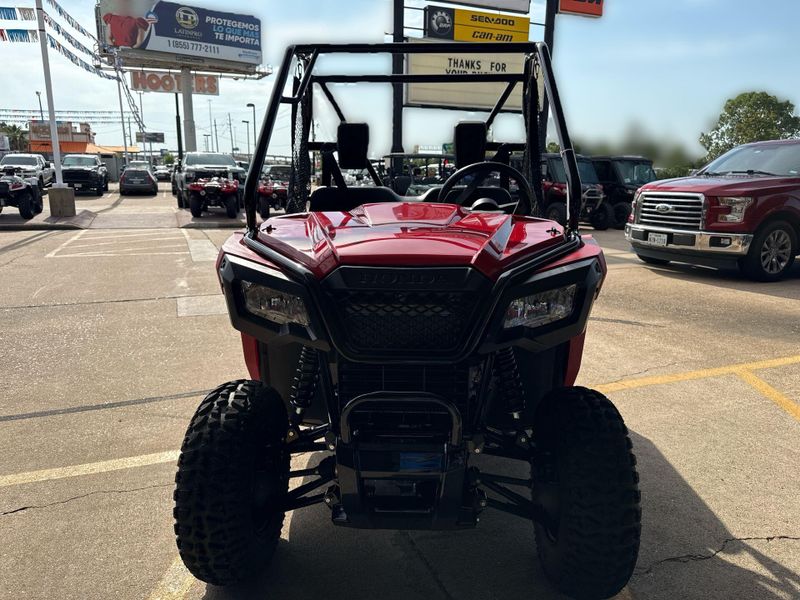

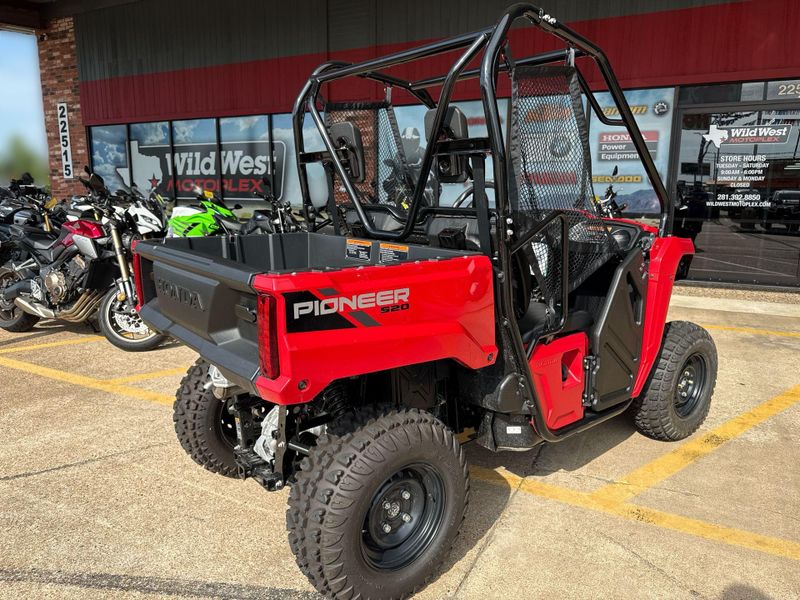

New 2025 Honda PIONEER 520
Pricing Details
Your Price:
$10,499
Vehicle Saved!

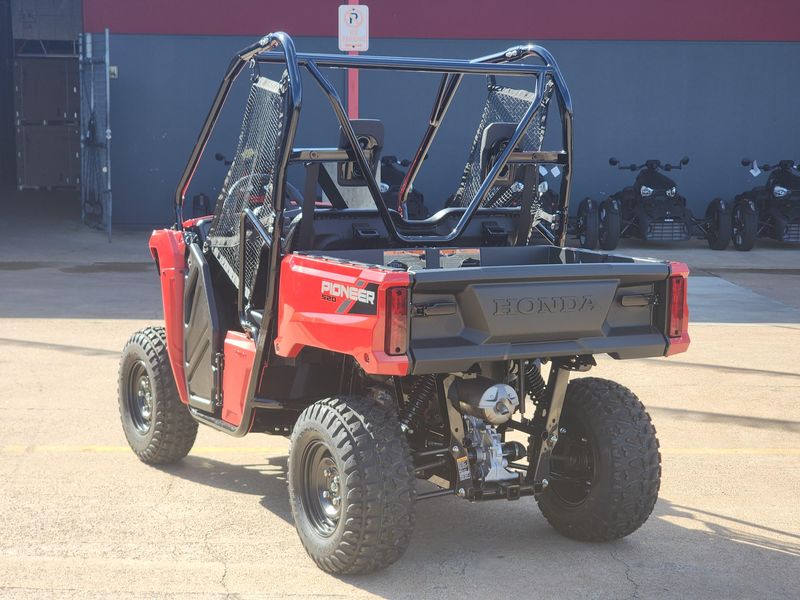

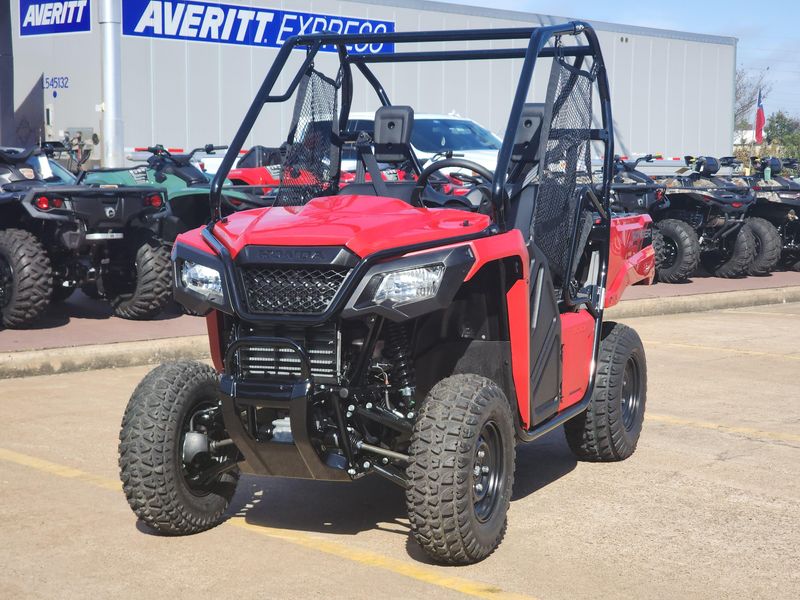

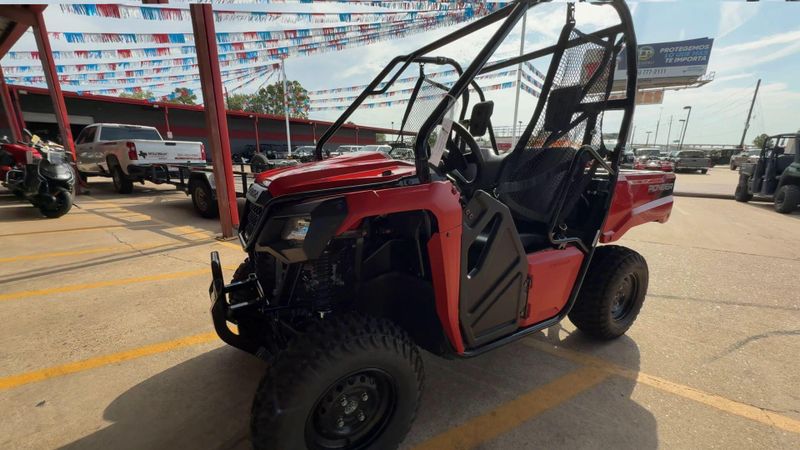

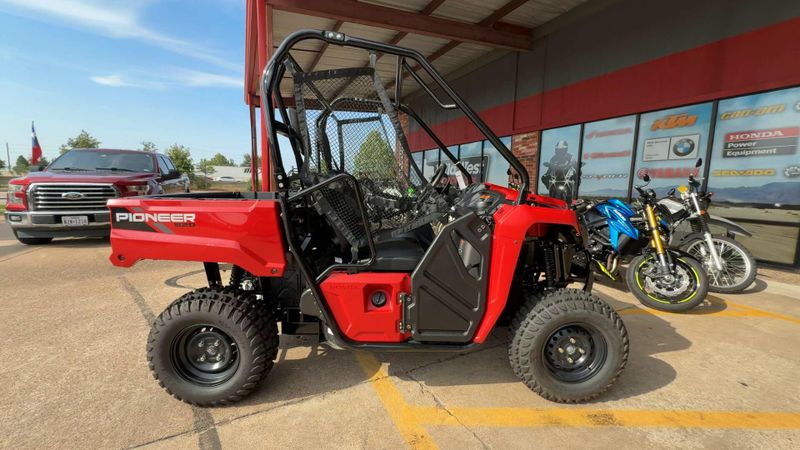

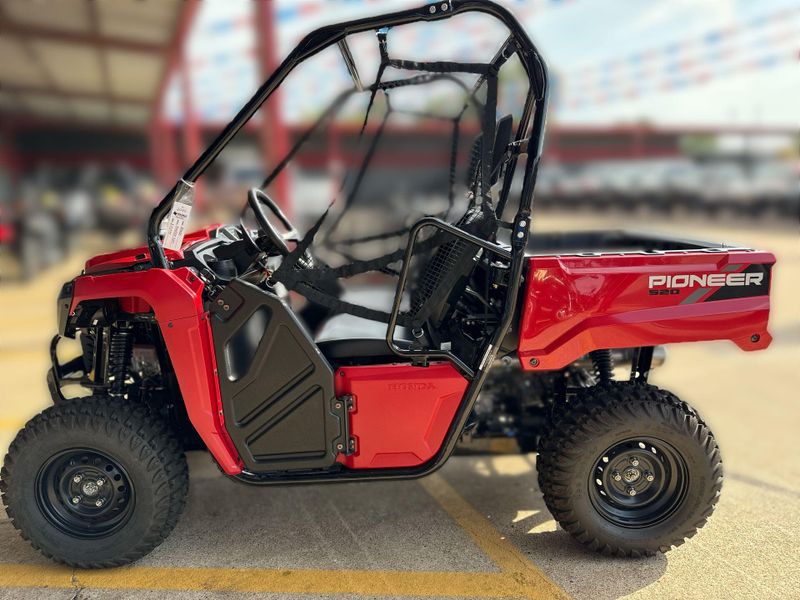

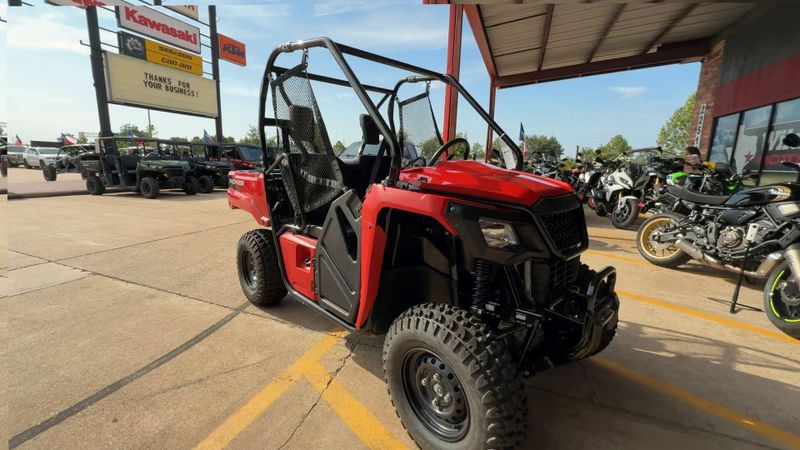

New 2025 Honda PIONEER 520
Vehicle Details
- Stock #: HU3126
- VIN: 1HFVE0740S4003126

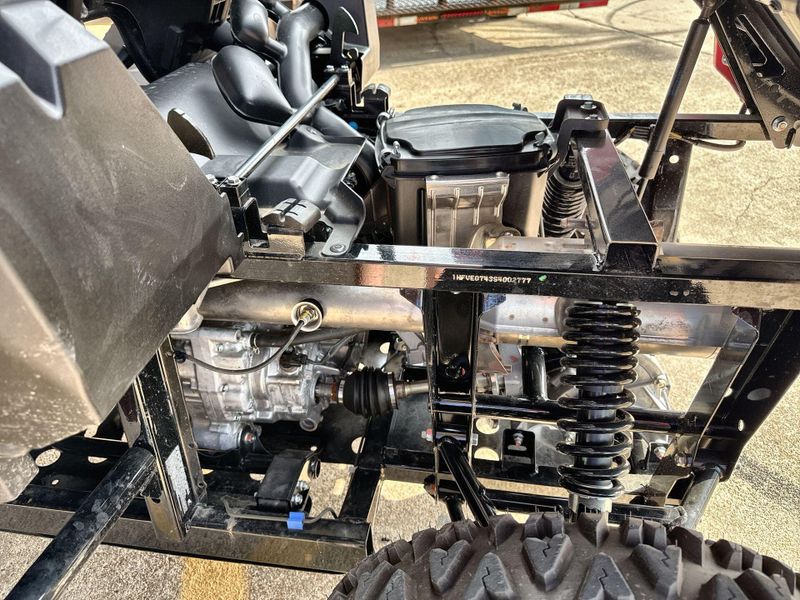

- Engine: 518cc liquid-cooled single-cylinder four-stroke
- Exterior Color: RED
Similar Vehicles
Frequently purchased together
Please select accessories from the list.
Click on the accessory link below to get more details.
Click on the accessory link below to get more details.
Work smarter, roam further

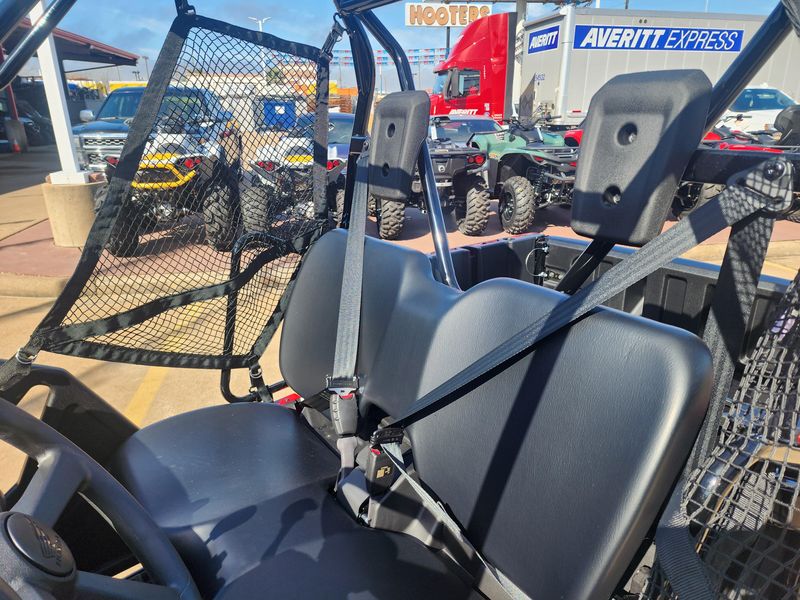

The Pioneer 520 is the Swiss Army knife of side-by-sides, combining compact agility with a mighty 518cc engine. With a 50-inch width, this mini powerhouse effortlessly navigates narrow trails, while a strut-assist tilt/dump bed, seating for two, and 1000-pound towing capacity underscore its versatility and reliability.
- 518cc liquid-cooled single-cylinder engine
- Closed-loop fuel injection
- Compact 50-inch width
- Variety of color options

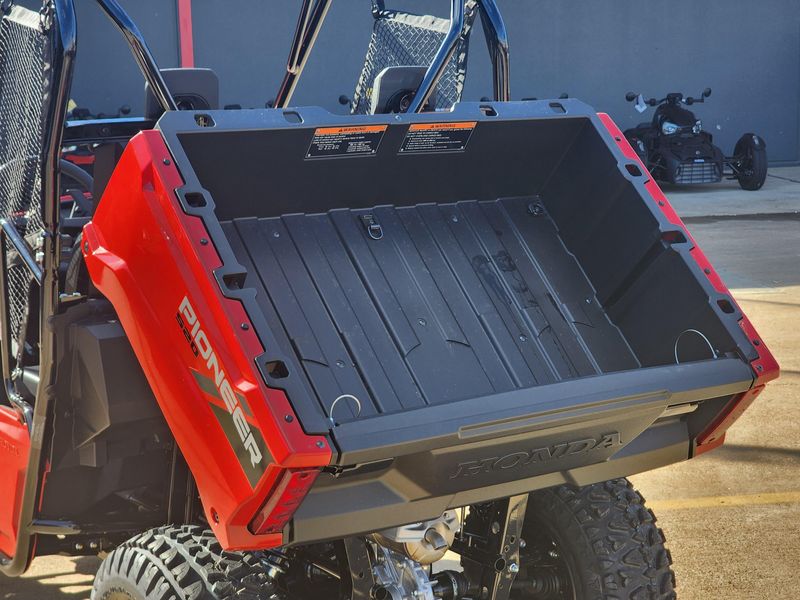

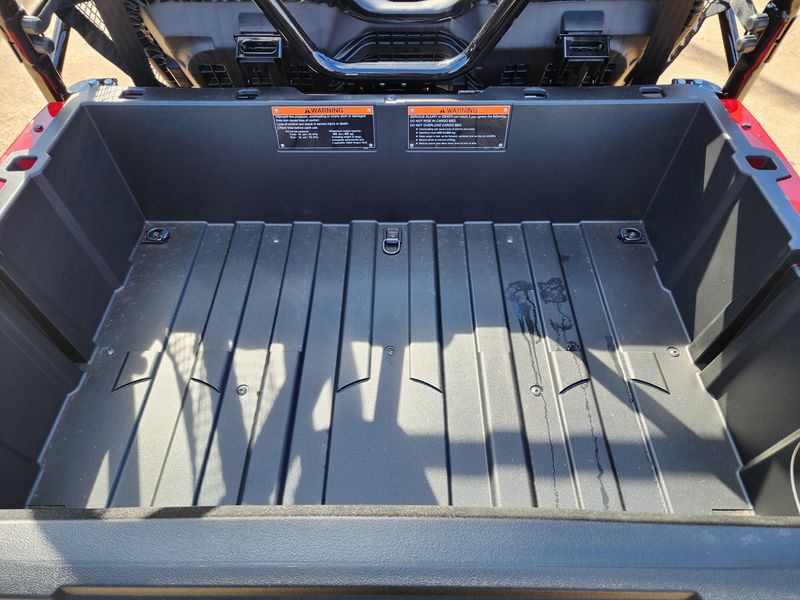

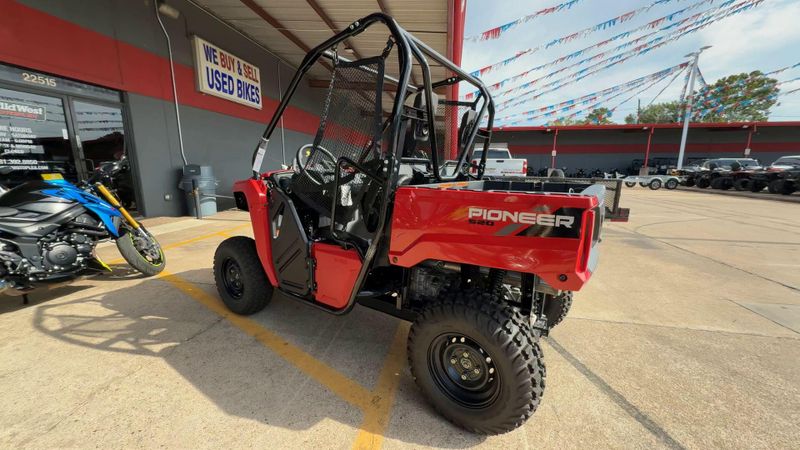

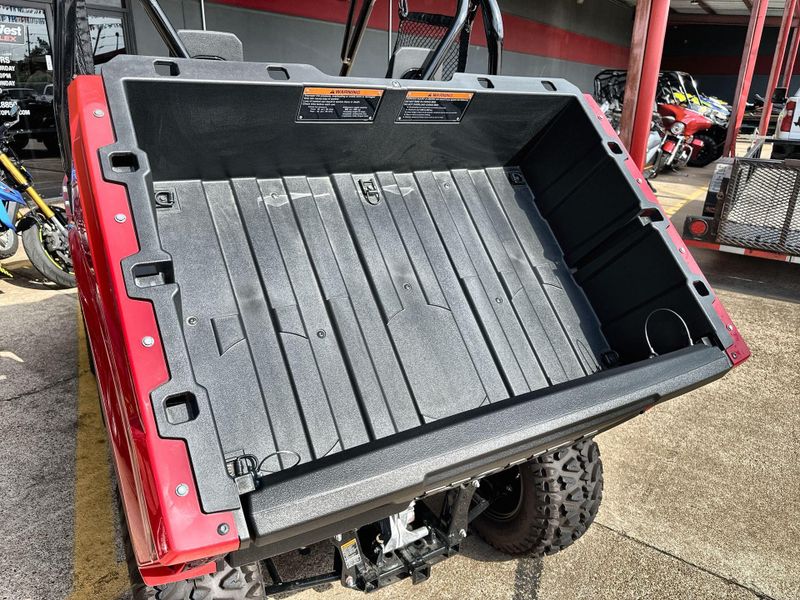

- Tilt/dump cargo bed with strut-assist
Highlighted Features
- Strong gearbox: Unlike the belt-drive automatics, our AT/MT mode transmission uses rugged steel gears for superior controllability and long transmission life, especially when descending hills.

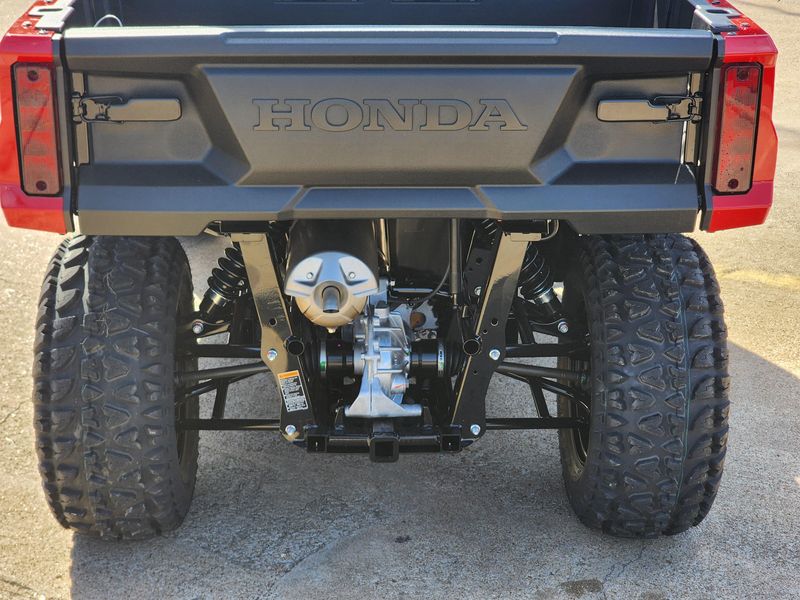

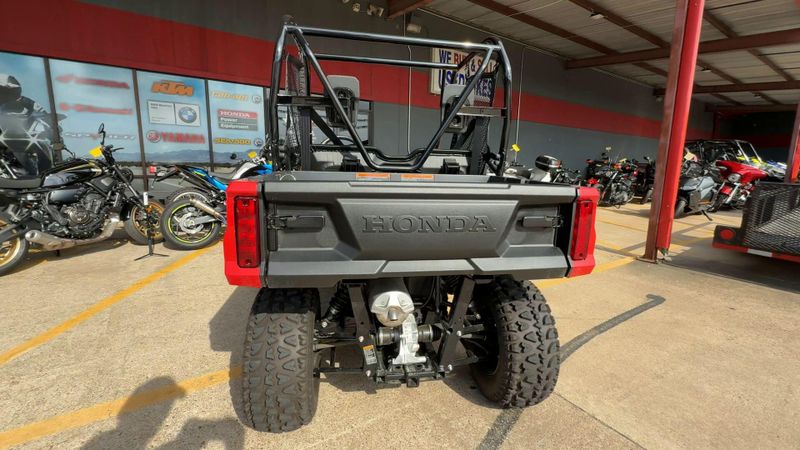

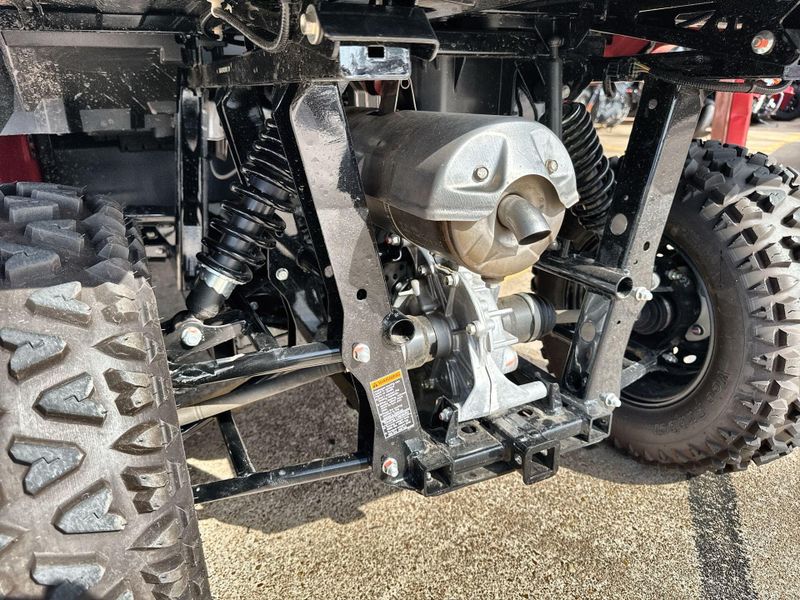

- 1000-pound towing capacity: A heavy-duty receiver-style hitch features a 1000-pound towing capacity.
- Powerful front and rear disc brakes: Disc brakes just plain make sense on a modern side-by-side, and that’s why we use them front and rear. They stop better, run cooler, resist debris, and are easier to maintain..
Engine

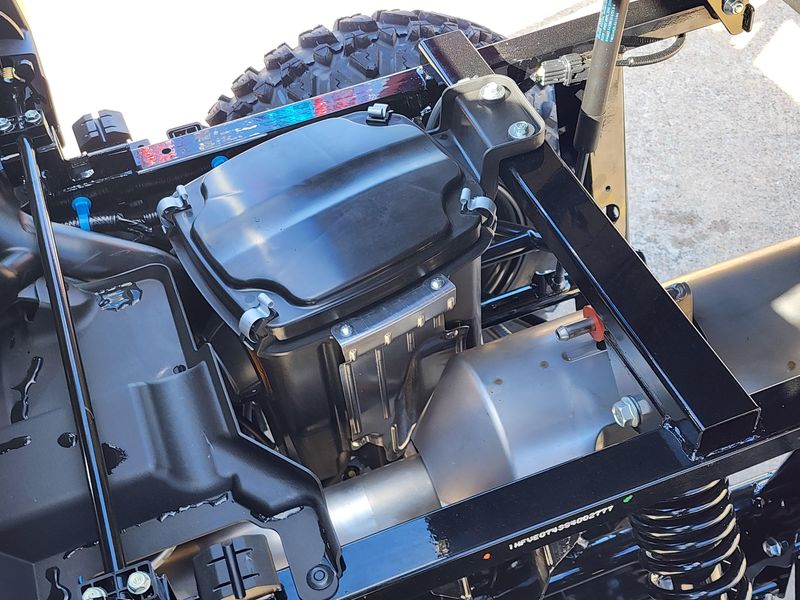

- Engine Type: 518cc liquid-cooled single-cylinder four-stroke
- Bore And Stroke: 96.0mm x 71.5mm
- Compression Ratio: 9.5:1
- Valve Train: OHV; two valves per cylinder
- Induction: Electronic fuel injection (PGM-FI), 36mm throttle body
Drive Train
- Clutch: Automatic

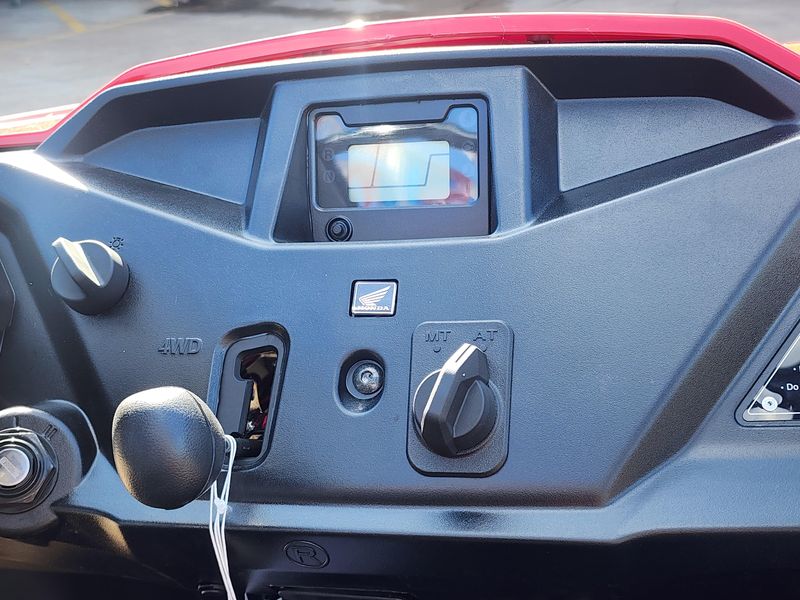

- Transmission: Five-speed automatic transmission with AT/MT modes
- Driveline: Direct front and rear driveshafts
Chassis Suspension Brakes

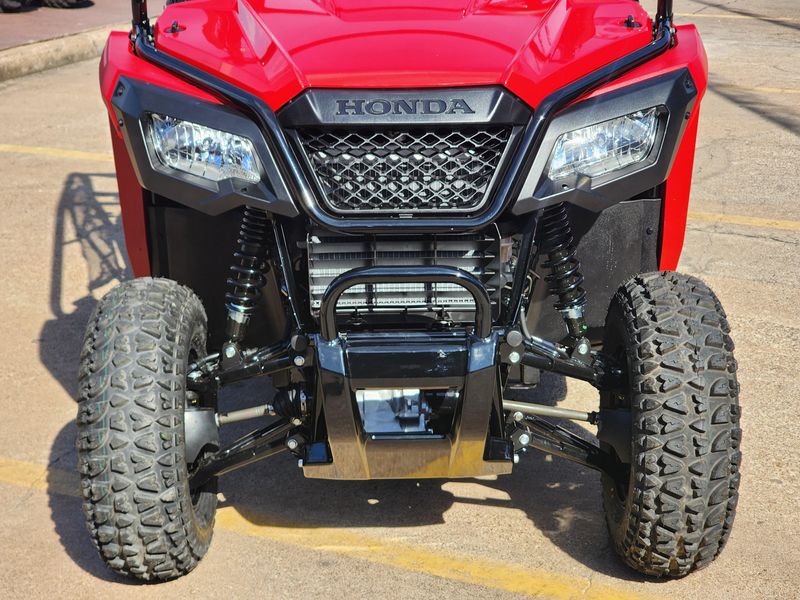

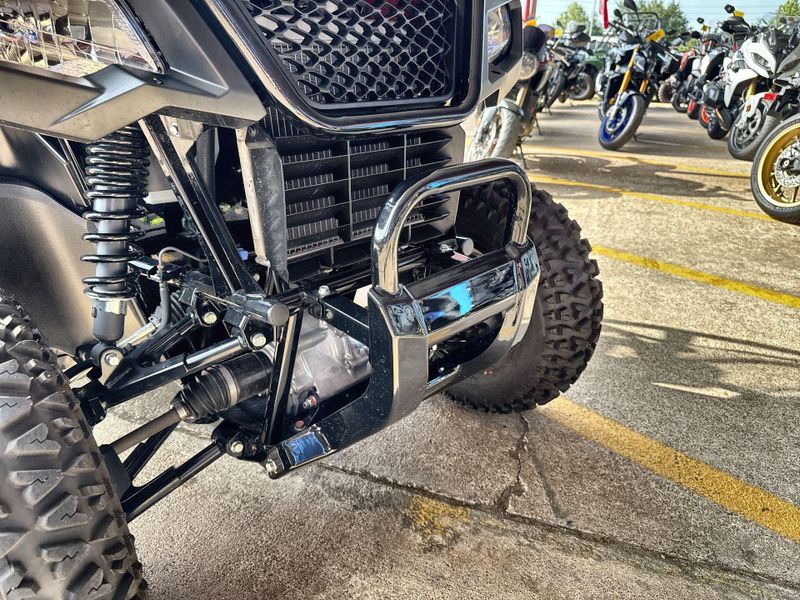

- Front Suspension: Independent double-wishbone; 5.8-inch travel
- Rear Suspension: Independent double-wishbone with preload adjustability; 5.9-inch travel
- Front Brake: Dual 200mm hydraulic disc
- Rear Brake: Single 170mm hydraulic disc

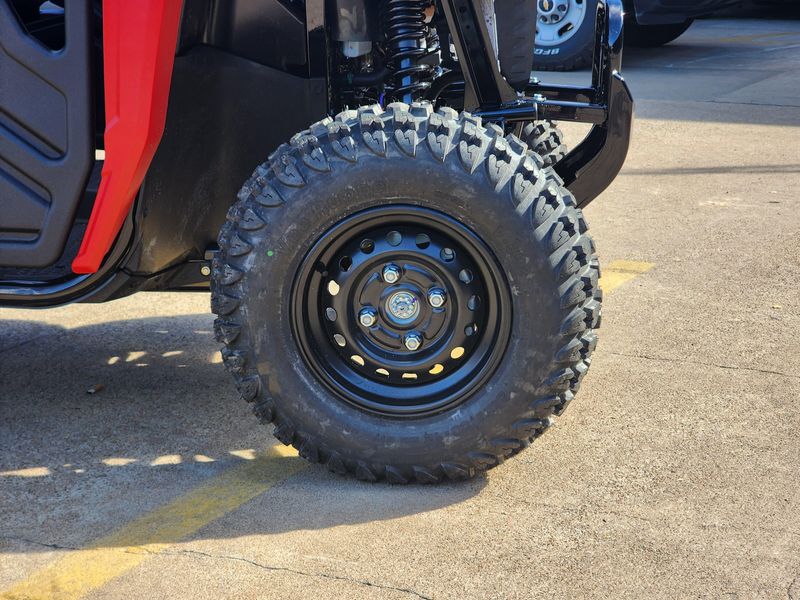

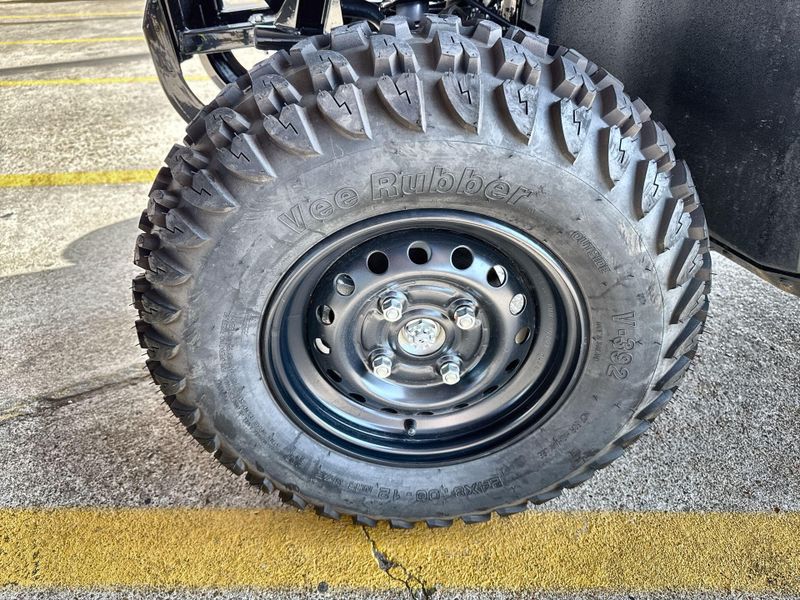

- Front Tires: 24 x 8-12

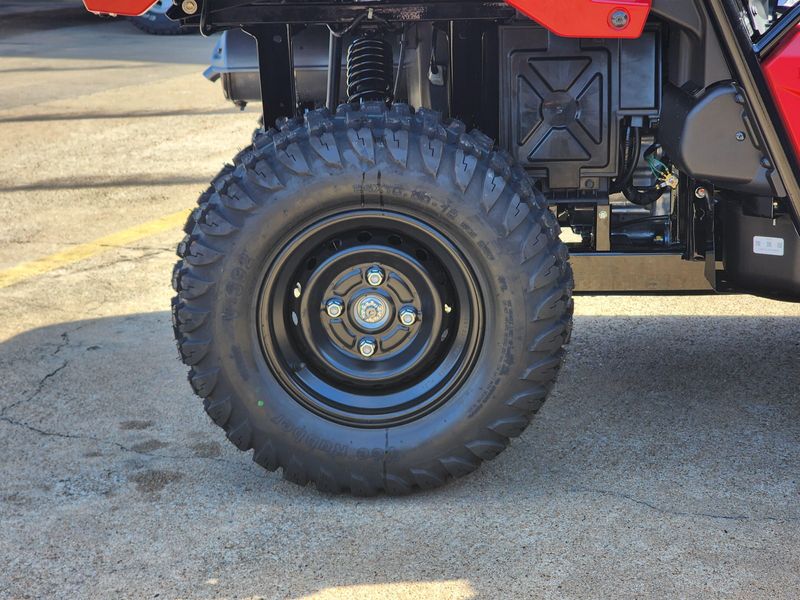

- Rear Tires: 24 x 10-12
Dimensions
- Length: 105.0 inches
- Width: 50.0 inches
- Height: 71.2 inches
- Wheelbase: 73.0 inches
- Bed Capacity: 450 pounds
- Towing Capacity: 1000 pounds
- Ground Clearance: 8.5 inches
- Turning Radius: 12.8 feet
- Curb Weight: 1058 pounds - Includes all standard equipment, required fluids and full tank of fuel.
- Fuel Capacity: 4.1 gallons, including 1.1-gallon reserve
Other
- Safety: Recommended for Drivers 16 years of age and older.
- Available Colors: Hero Red, Slate Gray, TrueTimber® Atera Camo
- Model ID: SXS520M2
Factory Warranty Information
- One Year Included: Transferable, limited warranty
- Optional Extended: Extended coverage available with a HondaCare® Protection Plan
