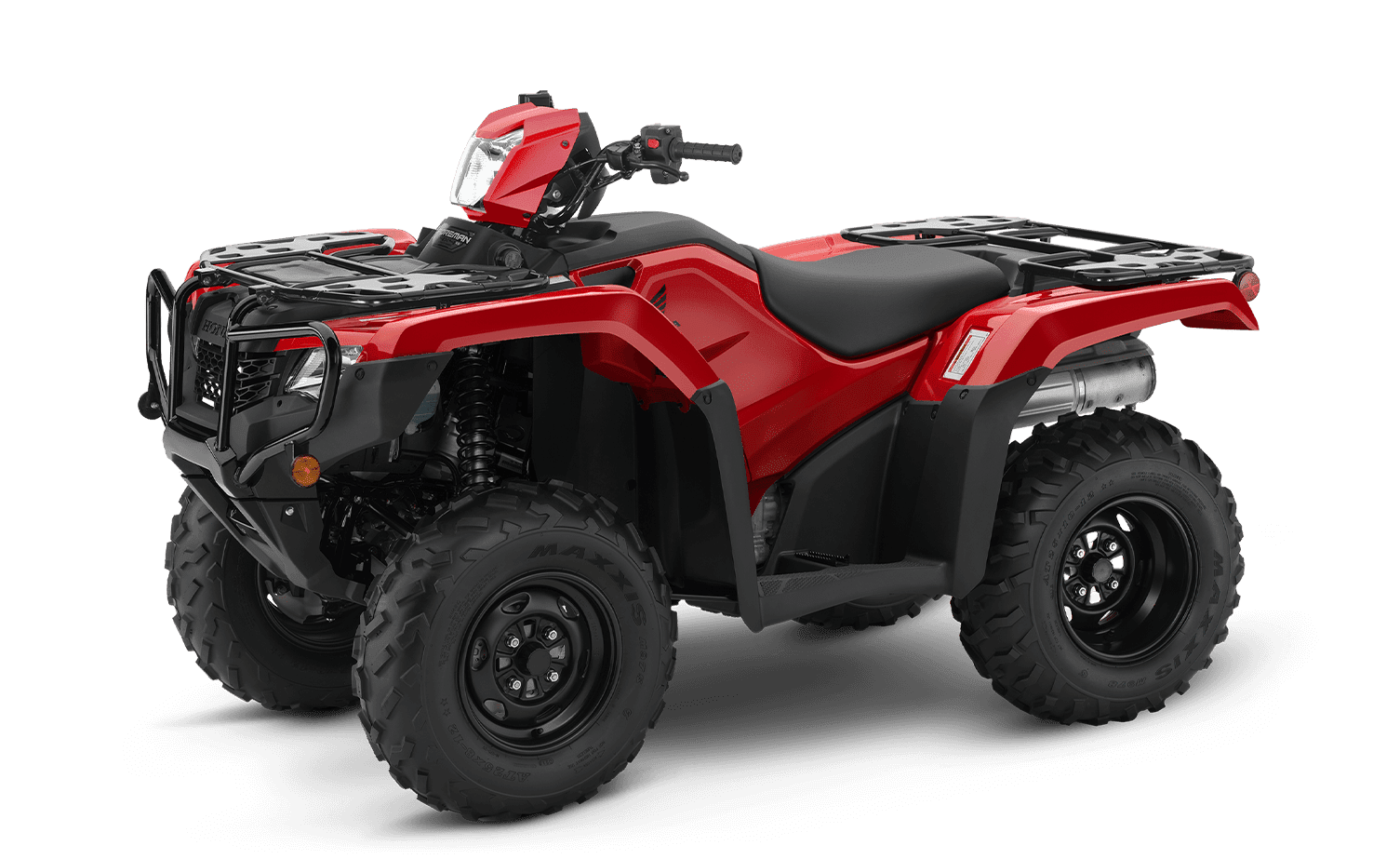

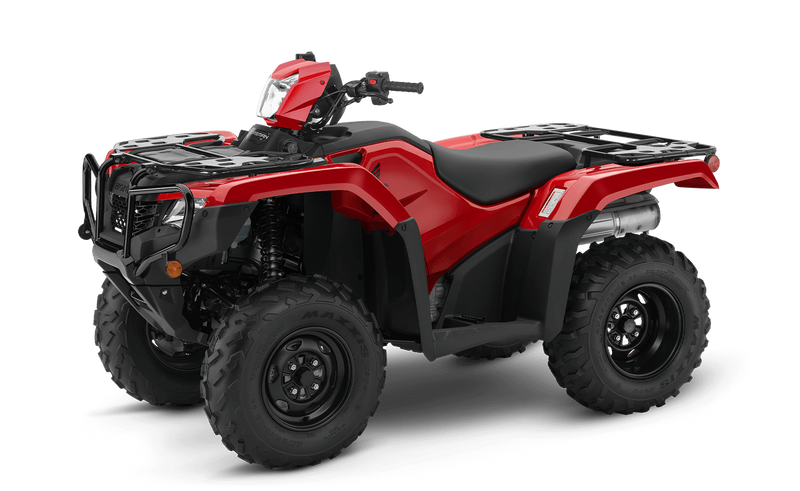

New 2025 Honda FOREMAN 4X4 EPS
Pricing Details
Your Price:
$8,899
Vehicle Saved!
New 2025 Honda FOREMAN 4X4 EPS
Vehicle Details
- Stock #: HA0806
- VIN: 1HFTE4466SJ100806
- Engine: 518cc longitudinally mounted liquid-cooled single-cylinder four-stroke
- Exterior Color: RED
- Drive: Selectable 4X2 / 4X4
Similar Vehicles
Frequently purchased together
Please select accessories from the list.
Click on the accessory link below to get more details.
Click on the accessory link below to get more details.
Rugged adventure beckons
The FourTrax Foreman 4x4 is the perfect tool for DIY enthusiasts, offering unparalleled performance, durability, and craftsmanship. With its powerful 518cc engine and long-travel suspension, this ATV is designed for both tough work and adventurous trail riding.
Highlighted Features
- Powerfull: Experience unwavering performance with the robust 518cc engine, delivering the power needed on the trails and the job.
- TraxLok: Experience the ultimate in traction optimization with our TraxLok system. Three modes, 2WD, 4WD, and 4WD, with locking front differential and Speed Override, enable increased speed in extreme conditions like mud or snow.
- Front/rear cargo racks: Unlock limitless versatility with our rugged steel racks. They're designed for easy attachment and removal of Honda Pro-Connect cargo boxes and accessories, giving you added functionality.
- Swingarm suspension: The rear swingarm, with its solid axle, provides superior capability for towing and hauling. Its long suspension stroke and plush seat let you tackle your favorite trail or the toughest chores in comfort all day.
Engine
- Engine Type: 518cc longitudinally mounted liquid-cooled single-cylinder four-stroke
- Bore And Stroke: 96.0mm x 71.5mm
- Compression Ratio: 9.5:1
- Valve Train: OHV; two valves per cylinder
- Induction: Programmed Fuel Injection (PGM-FI); 36mm throttle body
- Starter: Electric with optional auxiliary recoil
Drive Train
- Clutch: Automatic
- Transmission: Five-speed with reverse
- Driveline: Direct front and rear driveshafts with TraxLok® and front differential lock
Chassis Suspension Brakes
- Front Suspension: Independent double-wishbone; 7.3-inch travel
- Rear Suspension: Swingarm with single shock; 7.3-inch travel
- Front Brakes: Dual 190mm discs
- Rear Brakes: 160mm sealed mechanical drum
- Front Tires: 25 x 8-12
- Rear Tires: 25 x 10-12
Dimensions
- Length: 82.9 inches
- Width: 47.4 inches
- Height: 47.8 inches
- Wheelbase: 50.0 inches
- Seat Height: 34.5 inches
- Ground Clearance: 7.5 inches
- Curb Weight: 648 pounds (includes all standard equipment, required fluids and a full tank of fuel)
- Fuel Capacity: 3.9 gallons, including 1.3-gallon reserve
- Turning Radius: 10.5 feet
- Towing Capacity: 848 pounds
- Front Rack Capacity: 88 pounds
- Rear Rack Capacity: 176 pounds
Other
- Available Colors: Hero Red, Black Forest Green, TrueTimber® Atera Camo
- Model ID: TRX520FM2
- Emissions: Meets current EPA CARB (California) off-road emissions standards.
- Important Safety Information: Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
Factory Warranty Information
- One Year Included: Transferable, limited warranty
- Optional Extended: Extended coverage available with a HondaCare® Protection Plan
Disclaimer
